Engaging Meter Drive

Vacuum Meter

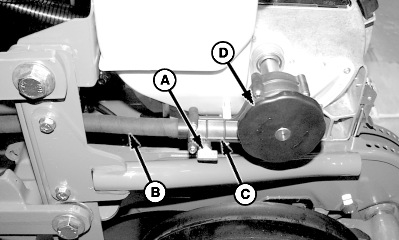

1. Rotate lock pin (A) 180 degrees until the word "locked" is on the bottom.

NOTE: If Pro-Shaft Drive cable won't slide into housing, rotate meter drive handle (D) until cable slides into gearbox.

2. Push Pro-Shaft Drive cable (B) into gearbox housing (C).

3. Rotate lock pin (A) 180 degrees until the word "locked" is on the top.

A51027


A-Lock Pin
B-Cable
C-Gearbox Housing
D-Meter Drive Handle

OUO6023,00014A0 -19-18SEP02-1/2

Mechanical Meter

1. Remove pin (B).

2. Push handle (C) inward to engage meter.

3. Install pin (B) through handle and meter coupler.

4. Rotate shield into position and tighten wing nuts (A).


A-Wing Nuts
B-Pin
C-Handle

A52475
A52474
A52487

OUO6023,00014A0 -19-18SEP02-2/2
