Shear Protection Points

Shear pins may become deformed through normal usage. In this condition, it is possible for the shear pin to eventually fail without a machine malfunction.

Infrequent or improper lubrication causes "binding" of moving parts within the machine. This "binding" will cause the shear pins to shear, thus preventing breakage of machine parts.

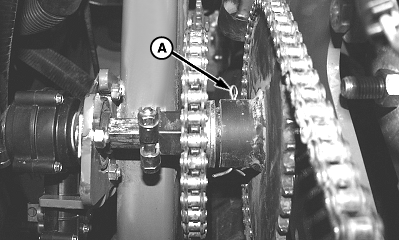

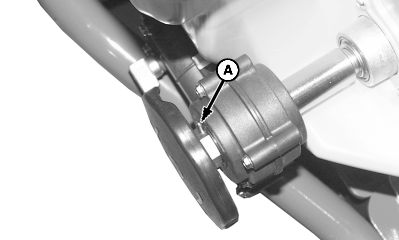

A-Shear Pin
