Lowering/Raising Machine in Transport Position For Filling and/or Servicing

1. Press the PLANT-TRANS switch to TRANS position.

causym CAUTION: Be certain everyone is clear of machine. When SCV is activated the rockshafts are going to lower.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

2. Press and hold WING WHEEL-FOLD switch in the WING WHEEL position and activate SCV to FULLY LOWER wing wheels. (Center frame wheels will lower from high lift.)

3. Press the PLANT-TRANS switch to PLANT position.

IMPORTANT: To prevent damage to openers, lower frame and hitch simultaneously to keep machine level.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

4. Lower frame and hitch simultaneously, keeping hitch level until machine is COMPLETELY lowered.

5. Fill or service machine.

IMPORTANT: To prevent damage to openers, lower frame and hitch simultaneously to keep machine level.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

6. With PLANT-TRANS switch in PLANT position, raise frame and hitch simultaneously, keeping hitch level until machine is COMPLETELY raised.

7. Press the PLANT-TRANS switch to TRANS position.

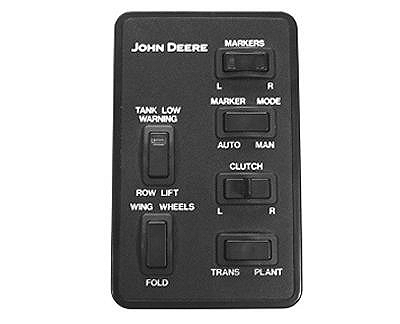

A50210

1790 Frame Control

OUO6074,00003CB -19-01AUG01-1/2

8. Press and hold WING WHEELS switch while activating the SCV to raise wing wheels and allow main frame wheels to extend into high lift.

9. Press and hold ROW LIFT switch while activating the SCV to raise the wing row units.
