Tightening Wheel Bolts

IMPORTANT: Check torque on wheel bolts prior to operation, after initial 10 hours of use and after every 50 hours.

Tighten wheel bolts (A) to specification.

Specification

Wing Wheel Bolts -Torque 176 N·m (130 lb-ft)

Specification

Center Frame Wheel Bolts -Torque 350 N·m (258 lb-ft)

A50133

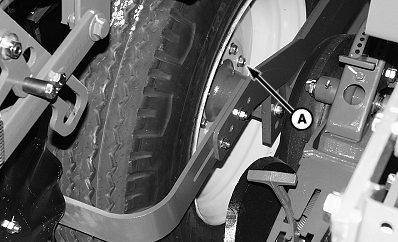

Center Frame Wheel Bolts Shown


A-Wheel Bolt

OUO6074,00003D0 -19-01AUG01-1/1
