Lubrication-Every 10 Hours or Daily

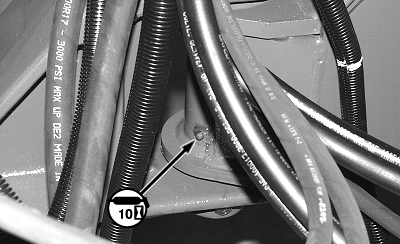

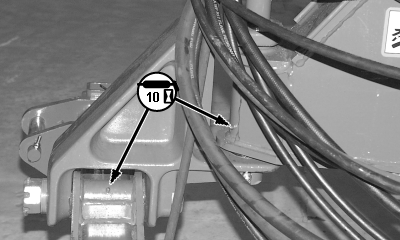

Marker Pivot
|

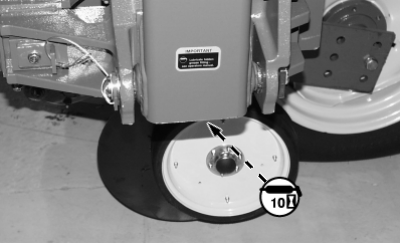

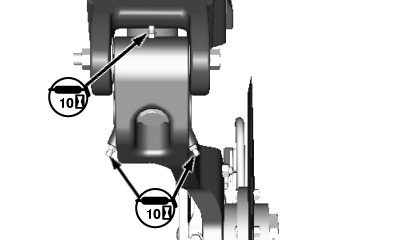

Single Disk Fertilizer Opener
|

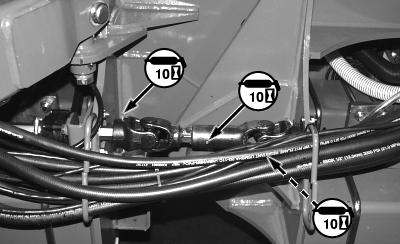

Telescoping Drive Shaft
|

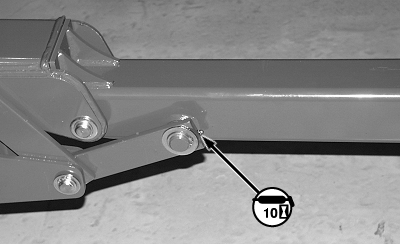

Lift Wheel Pivot
|
|
|
OUO6074,00003D9 -19-02AUG01-1/4
|
|
NOTE:
Grease marker control strap just prior to marker blade hitting ground. Marker will still be slightly in the air.
|

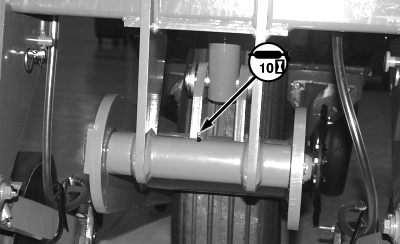

Marker Control Strap (40 ft Machine)
|
|
|
OUO6074,00003D9 -19-02AUG01-2/4
|

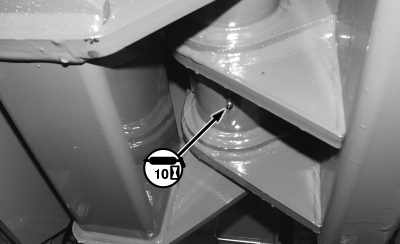

Hitch Pivot
|
Gauge Wheels
|

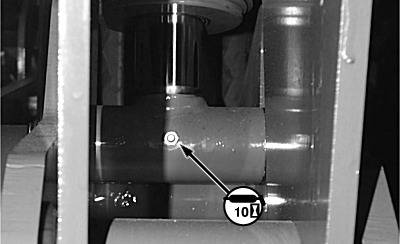

Piston Pump Shafts
|
Hitch Pivot
|
Wing Flex Pivot
|
Lift Frame Cylinder Pin
|
|
|
OUO6074,00003D9 -19-02AUG01-3/4
|
|
Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.
A-Port
B-Port
|
Piston Pump
|
|
|
OUO6074,00003D9 -19-02AUG01-4/4
|
|
