Adjusting Pump to Pump Number Setting

NOTE: After determining desired gallons per acre, set pump at the number setting required.

Example: 762 mm (30 in.) row spacing and 19.0 gallons per acre. Set pump at 5.0.

1. Install special tool (A) on to pump pin (B) aligning teeth of tool with teeth of scale ring (C).

2. Loosen nut (D) and rotate scale ring with special tool until pointer (E) is pointing to the number on gauge (F) that was selected from the rate chart. Tighten nut to specification.

Specification

Nut -Torque 25 N·m (18 lb-ft)

A35432


A-Special Tool
B-Pin
C-Scale Ring
D-Nut
E-Pointer

OUO6074,00003DD -19-02AUG01-1/2

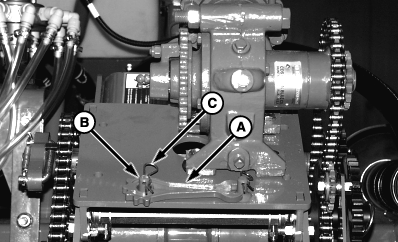

3. Store special tool (A) on pin (B) located on pump mounting bracket. Attach tool with clip pin (C).


A-Special Tool
B-Pin
C-Clip Pin

A50572
