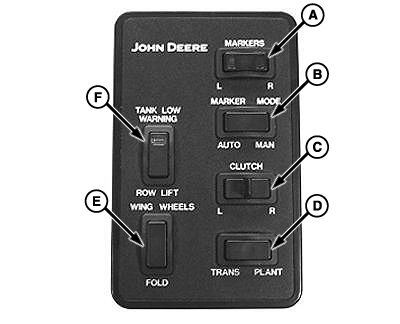

Frame Control Console

NOTE: The lights in the MARKERS switch will not come on if the PLANT/TRANS switch is not in Plant and the MAN/AUTO switch is in the middle position.

A -MARKERS switch controls individual marker use when MARKER MODE switch is in MAN position.

B -MARKER MODE switch allows manual or automatic alternation of markers.

C -CLUTCH DISENGAGE switch disengages a drive on either half of machine, for planting point rows.

D -PLANT-TRANS switch allows machine to be raised or lowered without operating any switches when in PLANT position. When in TRANS position, it allows machine to fold and unfold, raise and lower wing wheels and center wheels, and raise the rear rank row units.

E -WING WHEELS/FOLD switch is used to fold and unfold or extend and retract wing wheels.

F -TANK LOW WARNING LIGHT/ROW LIFT switch is used to alert operator when tank is low on seed and to raise rear rank row units.
