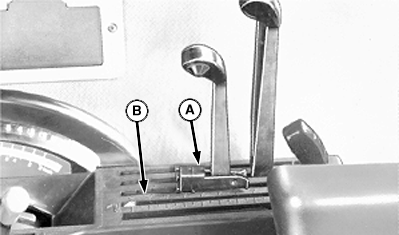

CCS SCV Lever Lock Clip (55-60 Series Row Crop Tractors)NOTE: The clip keeps lever from returning to NEUTRAL to maintain constant oil pressure to the down pressure valve, as required, to maintain chosen pressure setting. If equipped with constant hydraulic downforce, the lever lock clip R52667 (A), over lock-out stop (B) must be used to hold opener control lever in the DOWN position.
|
|
OUO6074,00004EF -19-05NOV02-1/3 |
|
1.

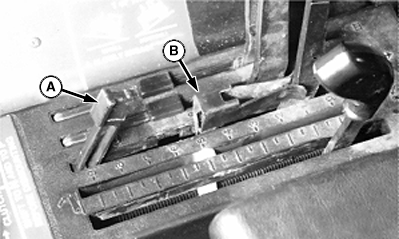

Lift float lock-out stop (A).
2. Squeeze sides of lock clip (B) and insert into groove as shown.
|
|
OUO6074,00004EF -19-05NOV02-2/3 |
|
3.

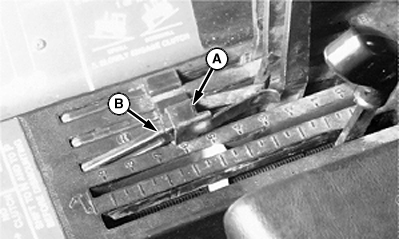

Slide lock clip (A) over lock-out stop (B).
4. Push lock-out stop and lock clip down. 5. Push handle forward into lock-clip when constant hydraulics is needed.
|
|
OUO6074,00004EF -19-05NOV02-3/3 |
