Install Radar Signal Adapter Harness—9000 and 9000T Series Tractor

NOTE: This harness is used when existing tractor radar will supply signal to monitor and to tractor instrumentation. If tractor is not equipped with radar and a planter radar will be installed, go to “9000 and 9000T Series Tractor—Radar and Bracket Installation”.

1.
   A40635-UN-26DEC96

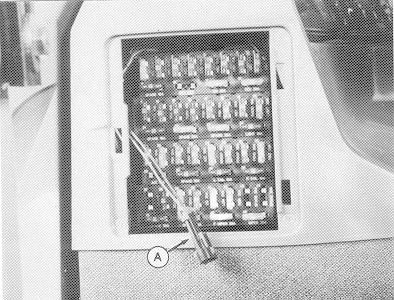

   A - 2-Pin Harness

   Remove fuse panel cover and locate 2-pin harness (A).

---




2.
   A40636-UN-26DEC96

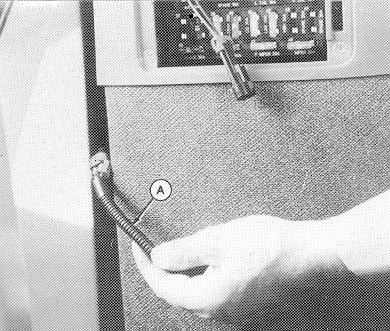

   A - Signal Harness

   Route signal harness (A) behind console and into fuse panel area.

---




3.
   A40637-UN-26DEC96

   Connect signal harness to tractor harness. Push connector back to side of fuses.

---




4. Install fuse panel cover.

5. Route signal harness under floor mat along window.

6.
   A40638-UN-26DEC96

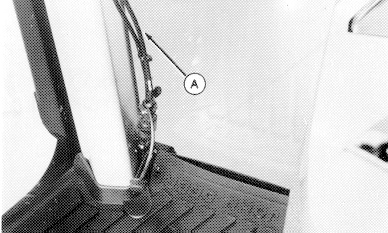

   A - Radar Harness

   Connect signal harness to monitor radar harness (A).

---
