Install Radar—8000T Series Tractors

  1. Remove two plastic plugs on right-hand side of tractor ahead of the cab air filter cover.

  2. A44870
    A44870-UN-01MAY98

    A44898
    A44898-UN-01MAY98

    A - Cap Screws

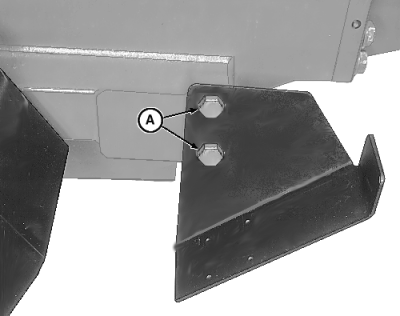

    Install radar bracket using two M20 x 35 cap screws (A).


  3. IMPORTANT: Radar serial number plate must be facing up (as illustrated) when radar is installed.

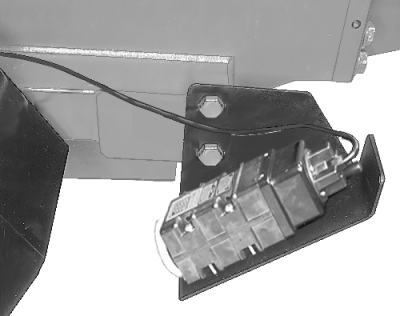

    Install radar on bracket using four 1/4 x 4 in. cap screws, flat washers and lock nuts.

  4. Route harness and connect to monitor radar lead.

  5. A44896
    A44896-UN-06MAY98

    A - 3-Pin Connector

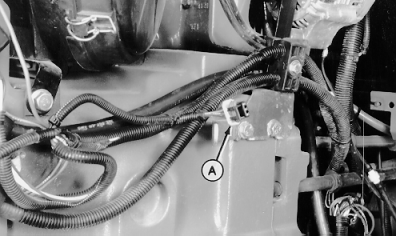

    Locate 3-pin connector (A) on left side of transmission.


  6. A44897
    A44897-UN-06MAY98

    A - Adapter Harness

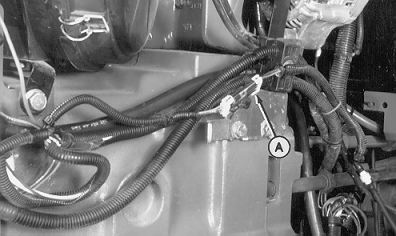

    Connect radar harness to adapter harness and adapter harness (A) to 3-pin connector.


  7. Coil excess harness and tie away from exhaust and moving parts using plastic ties as required.
