Regular, Regular Straight, Small Straight and Large Seed Tubes (MaxEmerge™ Plus Row Units)

If seed tubes must be removed or replaced, proceed as follows:

To remove:

  1. Disconnect planter harness from seed tube sensor.

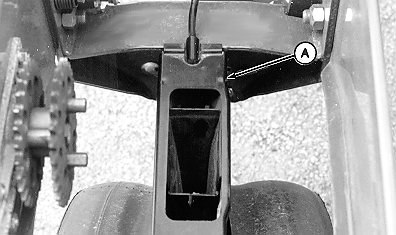

  2. A41218
    A41218-UN-14MAY97

    A - Cover

    Remove shank cover (A).

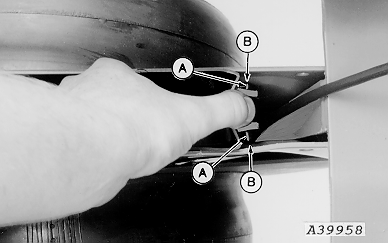

  3. A39958
    A39958-UN-05AUG96

    A - Disengage Tabs

    B - Latching Holes

    Depress front of seed tube to disengage tabs (A) from latching holes (B).


  4. Remove seed tube.

To install:

  1. IMPORTANT: If seed tube is not properly located on aligning pin, inaccurate seed metering and/or damage to the seed tube may occur.

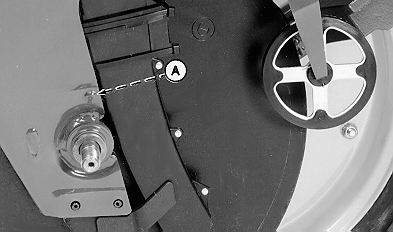

    A41217
    A41217-UN-14MAY97

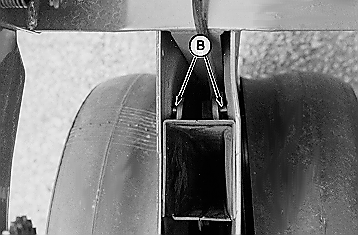

    A41219
    A41219-UN-14MAY97

    A - Pin

    B - Engage Tabs

    Position seed tube in shank, making certain it is engaged on pin (A).


  2. Depress front of seed tube and engage tabs (B) in latching holes.

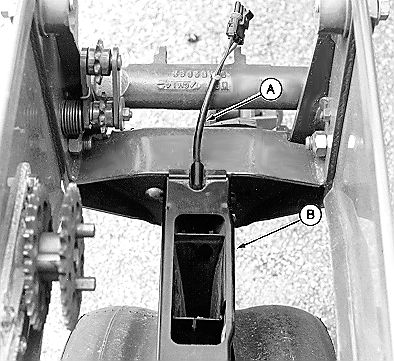

  3. A41220
    A41220-UN-14MAY97

    A - Harness Lead

    B - Cover

    Route harness lead (A) out of shank as shown.


  4. Replace shank cover (B).

  5. NOTE: make certain all slack is out of sensor lead before securing with ties.

    Connect seed tube sensor harness to planter harness.

AG,OUO1074,847-19-20000301
