Modification and Installation of Radar Bracket (60 Series Four-Wheel Drive Tractors)

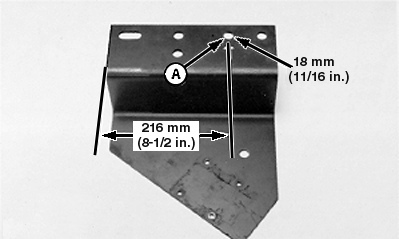

1. NOTE: 17.5 mm (11/16 in.) hole added to attach to tractor frame under the engine.


   A74928-UN-15MAR12

   A - Center Point

   Mark center point at location (A) and drill a 17.5 mm (11/16 in.) hole.

---




2. NOTE: Adjust bracket until top of bracket is LEVEL.


   H40991-UN-26MAR90

   A - Bracket Mounting Point

   B - Cap Screws, Washers, and Nuts

   Install bracket on tractor with two 5/8 x 2-1/2 in. cap screws, flat washers, and nuts at location (A) using the holes as illustrated.

---




3. CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar sensor.

   NOTE: Serial number plate on radar faces up.

   Install radar unit on bracket with cap screws, washers, and nuts (B).
