Modification and Installation of Radar Bracket (70 Series Four-Wheel Drive Tractors)

1.
   A35511-UN-14APR93

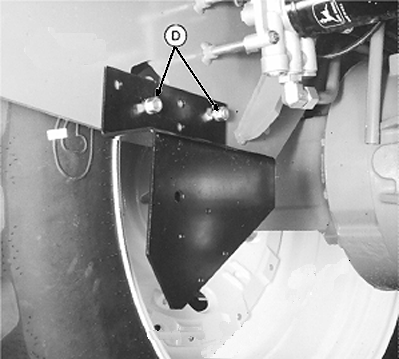

   A45954-UN-01MAR00

   A - Dimension, 98 mm (3-7/8 in.)

   B - Dimension, 45 mm (1-3/4 in.)

   C - Hole, 17.5 mm (11/16 in.)

   D - Bolts, Lock Washers, and Nuts

   Mark center point from (A) and (B) as illustrated and drill 17.5 mm (11/16 in.) hole (C) in radar bracket.

---




2. NOTE: Shift bracket until top is LEVEL.

   Install bracket on tractor with two 5/8 x 1-1/2 in. bolts, lock washers and nuts (D) using holes as illustrated.

3. CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar sensor.

   NOTE: Be certain radar unit is mounted on bracket with radar serial number plate (C) facing up.

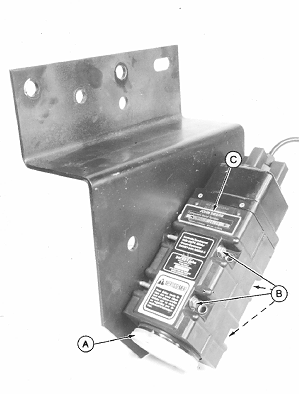

   A35513-UN-14APR93

   A - Radar Unit

   B - Cap Screws

   C - Serial Number Plate

   Install radar unit (A) on inside of bracket with four 1/4 x 4 in. cap screws (B). (washers under head of cap screws against radar unit), and nuts.

---
