6000 Series Tractors—Console Installation

1.
   A35324-UN-03DEC92

   A - Mounting Bracket

   B - Slot

   C - Bolt

   D - Wing Nut

   Install mounting bracket (A) with two M10 x 20 screws with flat washer on slot (B).

---




2. Thread M10 x 30 bolt (C) into bracket and install monitor mounting strap with M10 wing nut (D).

3.
   A35325-UN-03DEC92

   A - Knob

   Mount monitor console to monitor strap with threaded knob (A).

---




4.

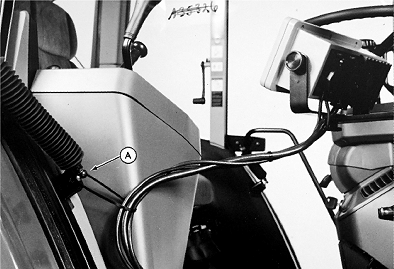

   A35409-UN-09DEC92

   9-Ft Harness Illustrated

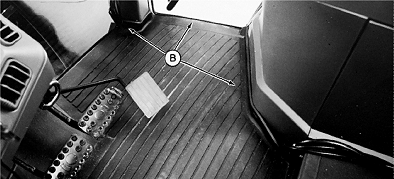

   A35410-UN-09DEC92

   15-Ft Harness Illustrated

   A - Door Gas Cylinder Anchor

   B - Harness Routing

   (Monitors With 2.7 m (9 ft.) Harness) Tie harness to door gas cylinder anchor (A) and route along side of right-hand console.

---




5. (Monitors With 4.6 m (15 ft.) Harness) Route under floor mat along side of right-hand console as shown (B).

6.
   A35328-UN-03DEC92

   A - Rear Convenience Outlet

   B - Grommet

   Connect power harness to rear convenience outlet (A).

---




7. (350/450 Monitor Only) Route main harness and radar harness through right-hand grommet (B).

8.
   A35329-UN-03DEC92

   A - Self-tapping Screws

   Install connector mounting spade to monitor harness connector using four self tapping screws (A).

---




9.
   A35330-UN-03DEC92

   A - Rear Connector Mounting Bracket

   B - Socket

   C - Tractor Bracket

   Install rear connector mounting bracket (A) to tractor bracket as shown.

---




10. Install bracket with hex head against socket (B).

11. Use large washer over large hole in tractor bracket (C).

12.
    A35331-UN-03DEC92

    A - Socket

    Install monitor connector with spade into socket (A).

---




13. Coil and band excess harness behind cab.

14. Connect radar harness from radar to monitor radar harness outside cab. Keep radar connector outside cab for easy monitor removal.

15. NOTE: Put harness under SMV first, then loop harness and install spade in socket.

    Position grommet on harness and caulk with rubber sealant.
