6000 Series Tractors with Exhaust Attached to Cab—Radar and Bracket Installation

1.

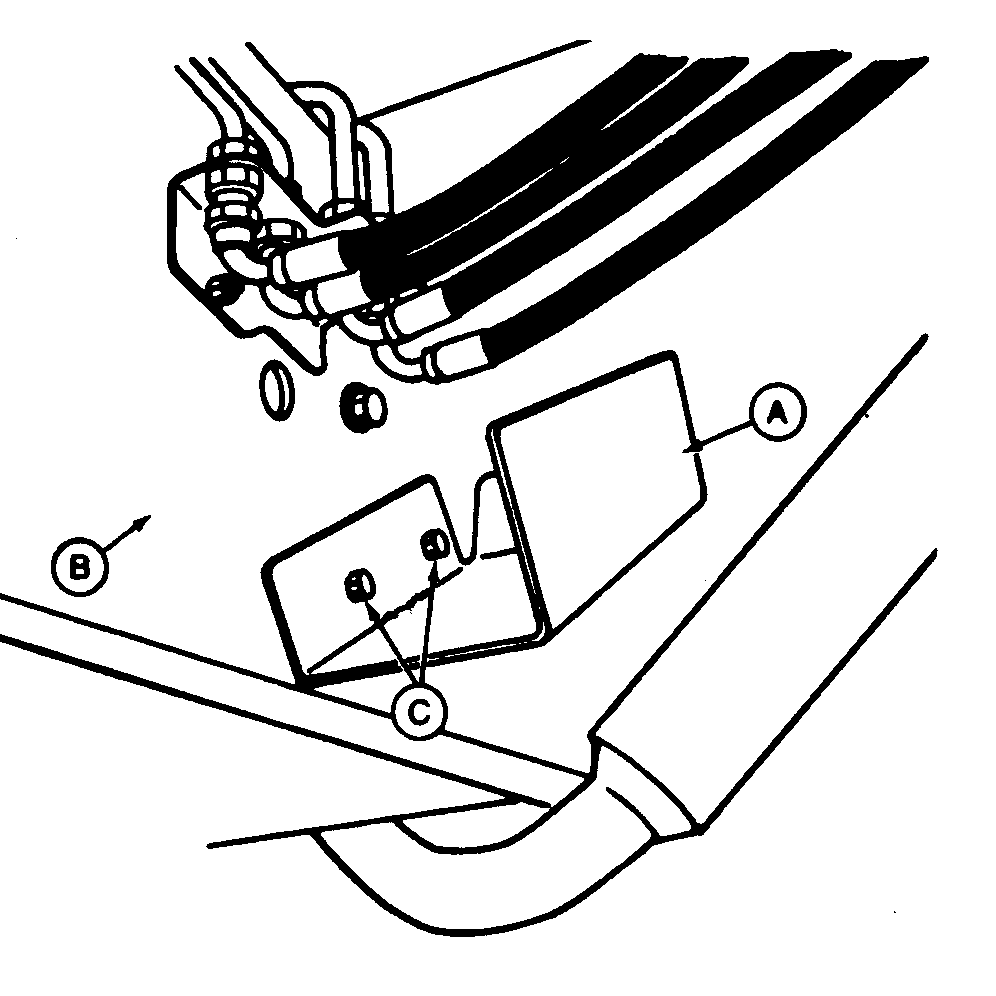

   A35492-UN-03FEB93

   A - Radar Bracket

   B - Frame

   C - Cap Screws

   Mount radar bracket (A) to frame (B) with two M12 x 35 cap screws (C). Use M12 nuts provided if tractor frame holes are not threaded.

---




2. Tighten all mounting hardware.

3.

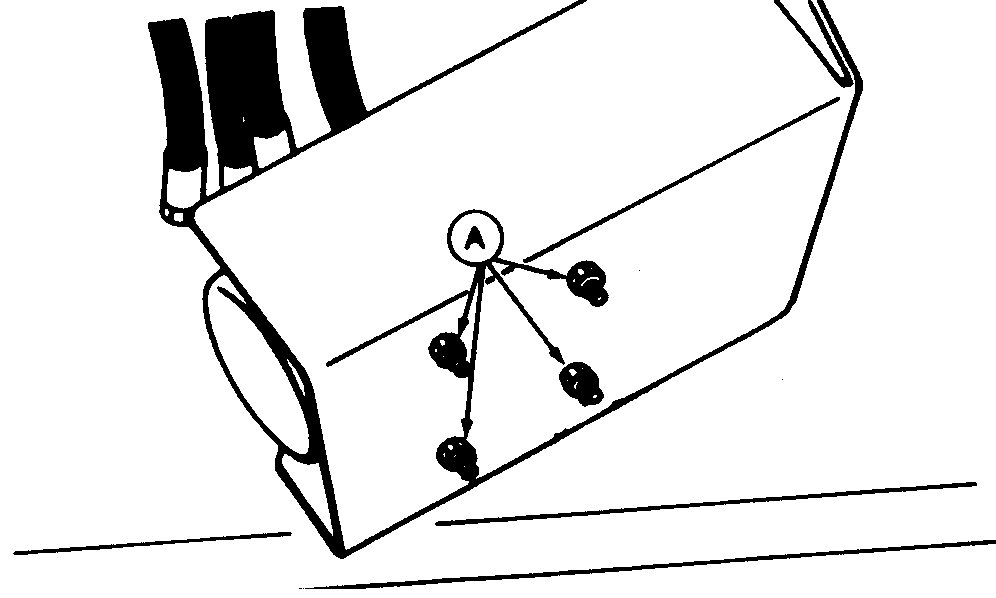

   A35497-UN-03FEB93

   A - Lock Nuts

   Radar must be mounted with serial number tag facing up. Attach with four 1/4 x 4 in. cap screws, four washers and four lock nuts (A). Washers are installed between bracket and lock nuts.

---




4. Route harness past cab side tipping hinge to rear of cab and connect to radar power harness. Secure with plastic self locking bands.

5. CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar sensor.

   Nominal calibration for this radar installation is 7776. Radar points 7 degrees to side to miss rear tire. Calibration is less than other radars at 7836.
