9000 and 9000T Series Tractors—Console Installation

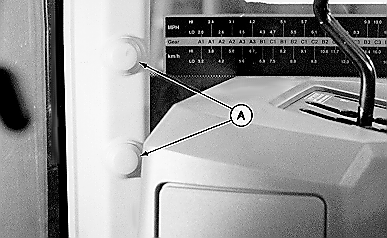

  1. A41224
    A41224-UN-19MAY97

    A - Plastic Covers

    Remove threaded plastic covers (A) from right-hand front corner post.

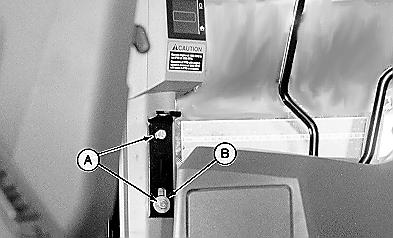

  2. A41225
    A41225-UN-19MAY97

    A - Cap Screws

    B - Flat Washer

    Install “L” bracket to front post using two M10 x 20 cap screws (A) with flat washer (B) on lower cap screw (slotted hole).


  3. Install M10 x 30 cap screw in threaded hole in “L” bracket.

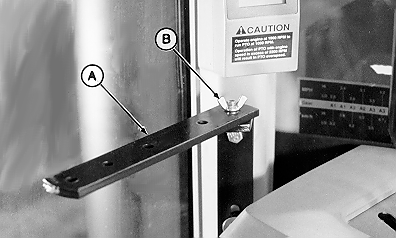

  4. A41226
    A41226-UN-19MAY97

    A - Monitor Strap

    B - Wing Nut

    Attach monitor strap (A) using M10 wing nut (B).


  5. NOTE: For tractors with mechanical shift transmission (MST), position monitor so as not to interfere with shifter operation.

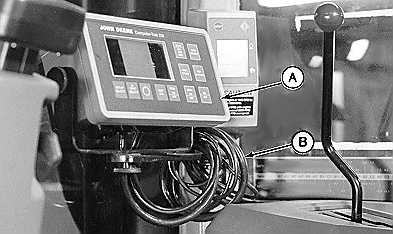

    A41227
    A41227-UN-19MAY97

    A - Monitor

    B - Excess Harness

    Attach monitor (A) to strap making certain to install rubber washer between monitor and strap.


  6. Coil excess harness (B) around strap.

  7. Route monitor harness along right-hand window and behind instrument panel.

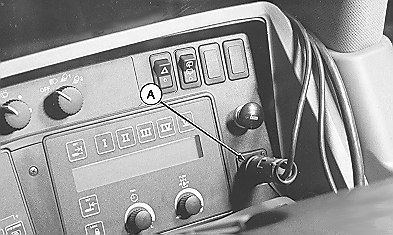

  8. A41228
    A41228-UN-19MAY97

    A - Convenience Outlet

    Connect monitor power harness to rear convenience outlet (A).


  9. A36914
    A36914-UN-26APR95

    A - Grommet

    Remove existing right-hand side grommet. Install harness in NEW grommet (provided) and install grommet (A).


  10. Connect extension harness to monitor harness from cab.

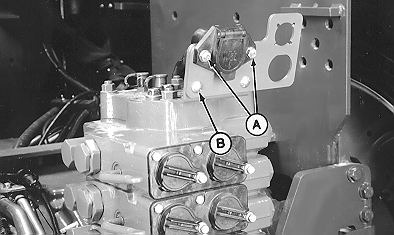

  11. A41223
    A41223-UN-19MAY97

    A - Cap Screws

    B - Round Head Bolt

    Remove two cap screws (A) attaching 7-pin connector and discard. Remove round head bolt (B) and save.

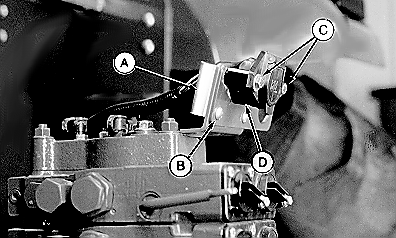

  12. A41229
    A41229-UN-19MAY97

    A - Socket

    B - Round Head Screw

    C - Cap Screw

    D - Spacer

    Install socket (A) using M8 x 16 round head bolt (B), washer and nut removed in step 11.


  13. Install two M8 x 60 cap screws (C), spacer (D) and 7-pin connector with flat washers against connector plastic, and nuts. Tighten hardware.

  14. H45416
    H45416-UN-02DEC92

    A - Harness Connector

    B - Mounting Spade

    C - Self-tapping Screws

    Attach harness connector (A) to mounting spade (B) using four self-tapping screws (C).

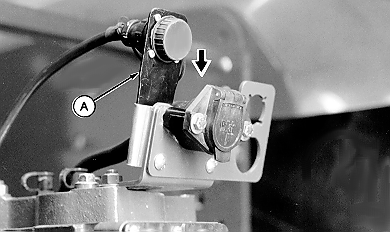

  15. A41230
    A41230-UN-11APR02

    A - Connector Spade

    Install connector spade (A) into socket and push down to seat.


  16. Route extension harness along existing harnesses or hydraulic lines. Be certain harness is clear of moving parts (e.g. PTO shaft, tractor hinge etc.).

  17. Tie band harness as required.

AG,OUO1074,867-19-20000301
