9000 and 9000T Series Tractor—Radar and Bracket Installation

NOTE: Earlier brackets need modified to avoid interference with hydraulic oil filter mounts. After bracket modification, installation procedure for earlier and later brackets is the same.

  1. A74929
    A74929-UN-15MAR12

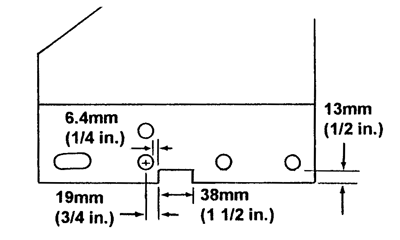

    Refer to illustration and cut a notch out of the top of the bracket at specified dimensions.


  2. NOTE: Adjust bracket until top of bracket is LEVEL.

    A41231
    A41231-UN-21MAY97

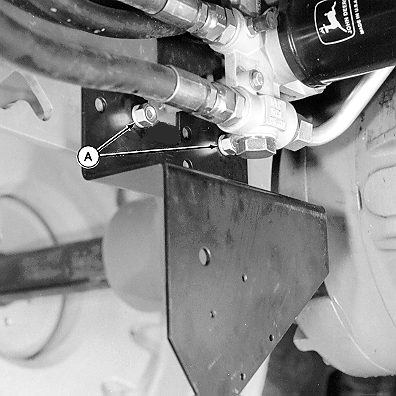

    A - Cap Screws, 5/8 x 1-1/2 in.

    Install bracket on tractor, by hydraulic oil filter housing, using two cap screws (A), flat washers, lock washers, and nuts.


  3. CAUTION: Avoid looking directly into the sensor face of radar to prevent possible eye damage from microwave signal emitted from radar.

    NOTE: Serial number plate on radar faces up.

    A41232
    A41232-UN-19MAY97

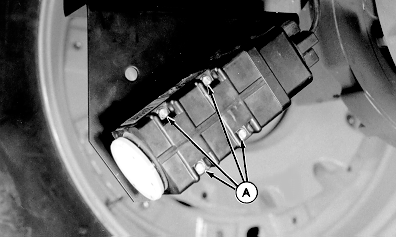

    A - Cap Screw, 1/4 x 4 in.

    Install radar unit on inside of bracket using four cap screws (A), flat washers, and lock nuts (flat washers under head of cap screw against radar unit).


  4. Route harness along right-hand frame to rear of cab. Tie band as required.

  5. Connect radar harness to monitor harness.

AG,OUO1074,868-19-20120315
