Install Radar Signal Adapter Harness—30 and 60 Series Tractors

NOTE: This harness is used when existing tractor radar will supply signal to monitor and to tractor instrumentation. If tractor is not equipped with radar and a planter radar will be installed, go to “30-60 Series Row Crop Tractors—Radar and Bracket Installation”.

  1. A44224
    A44224-UN-24OCT97

    A44225
    A44225-UN-24OCT97

    A - Radar Lead

    B - Radar Lead

    C - Adapter Harness

    D - Tie Straps

    Disconnect radar lead from instrumentation radar lead.

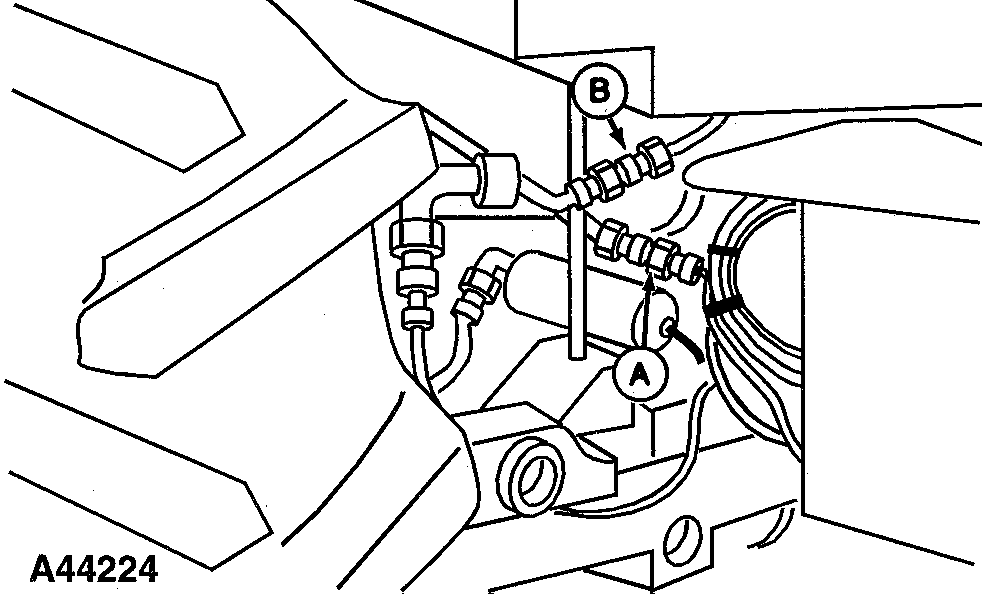

  2. Connect one short lead of adapter harness to radar lead (A) and other short lead from adapter harness to SEEDSTAR™ radar lead (B).

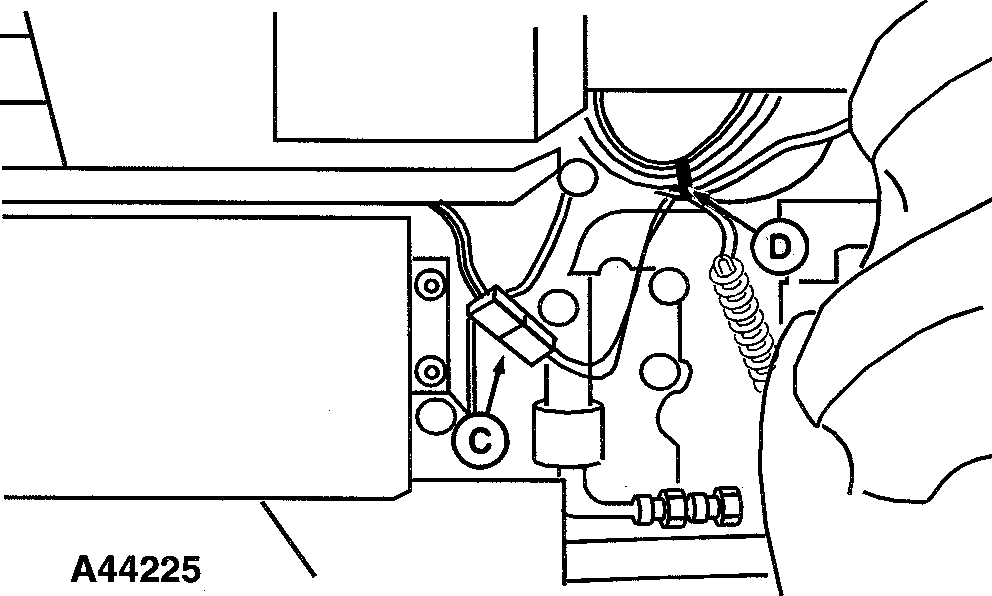

  3. Route other end of adapter harness (C) and connect to instrumentation input lead.

  4. IMPORTANT: Make certain harness cannot come in contact with moving parts and linkages.

    Loop excess harness and secure to tractor with tie straps (D).
