Installing Monitor Sensors—455, 1520, and 1530

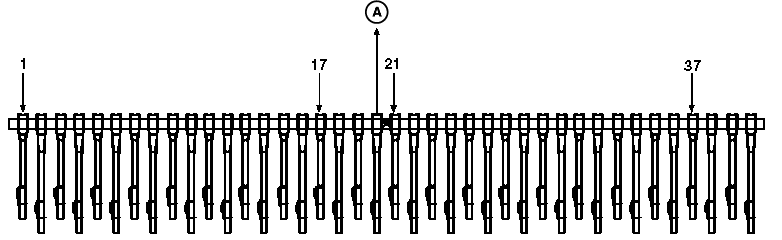

  1. A74930
    A74930-UN-15MAR12

    40 Row 455 Drill Shown

    A - Direction of Travel

    Remove seed tube hose from feed cup and seed boot. See following chart for proper hoses to remove.

    455 Drill

    Drill Width

    Row Spacing

    Row Numbers

    50 Row

    7.62 m (25 ft.)

    15 cm (6 in.)

    1, 22, 26, 47

    40 Row

    7.62 m (25 ft.)

    19 cm (7.5 in.)

    1, 17, 21, 37

    30 Row

    7.62 m (25 ft.)

    25 cm (10 in.)

    1, 13, 16, 28

    60 Row

    9.1 m (30 ft.)

    15 cm (6 in.)

    1, 17, 21, 27, 41, 57

    60 Row

    9.1 m (30 ft.)

    15 cm (6 in.)

    1, 17, 21, 27, 41, 57

    48 Row

    9.1 m (30 ft.)

    19 cm (7.5 in.)

    1, 13, 17, 29, 33, 46

    36 Row

    9.1 m (30 ft.)

    25 cm (10 in.)

    1, 10, 13, 22, 25, 34

    70 Row

    10.7 m (35 ft.)

    15 cm (6 in.)

    1, 22, 26, 42, 46, 67

    56 Row

    10.7 m (35 ft.)

    19 cm (7.5 in.)

    1, 17, 21, 33, 37, 54

    42 Row

    10.7 m (35 ft.)

    25 cm (10 in.)

    1, 13, 16, 25, 28, 40

    1520 Drill

    Drill Width

    Row Spacing

    Row Number

    30 Row

    4.6 m (15 ft.)

    15 cm (6 in.)

    2, 13, 18, 29

    24 Row

    4.6 m (15 ft.)

    19 cm (7.5 in.)

    2, 10, 15, 23

    18 Row

    4.6 m (15 ft.)

    25 cm (10 in.)

    2, 8, 11, 17

    40 Row

    6.1 m (20 ft.)

    15 cm (6 in.)

    2, 18, 23, 39

    32 Row

    6.1 m (20 ft.)

    19 cm (7.5 in.)

    2, 14, 19, 31

    24 Row

    6.1 m (20 ft.)

    25 cm (10 in.)

    2, 11, 14, 23

    1530 Drill

    Drill Width

    Row Spacing

    Row Number

    11 Row

    4.6 m (15 ft.)

    38 cm (15 in.)

    1, 5, 6, 11

    12 Row

    4.6 m (15 ft.)

    38 cm (15 in.)

    1, 6, 7, 12

    15 Row

    6.1 m (20 ft.)

    38 cm (15 in.)

    1, 7, 8, 15

    16 Row

    6.1 m (20 ft.)

    38 cm (15 in.)

    1, 8, 9 , 16

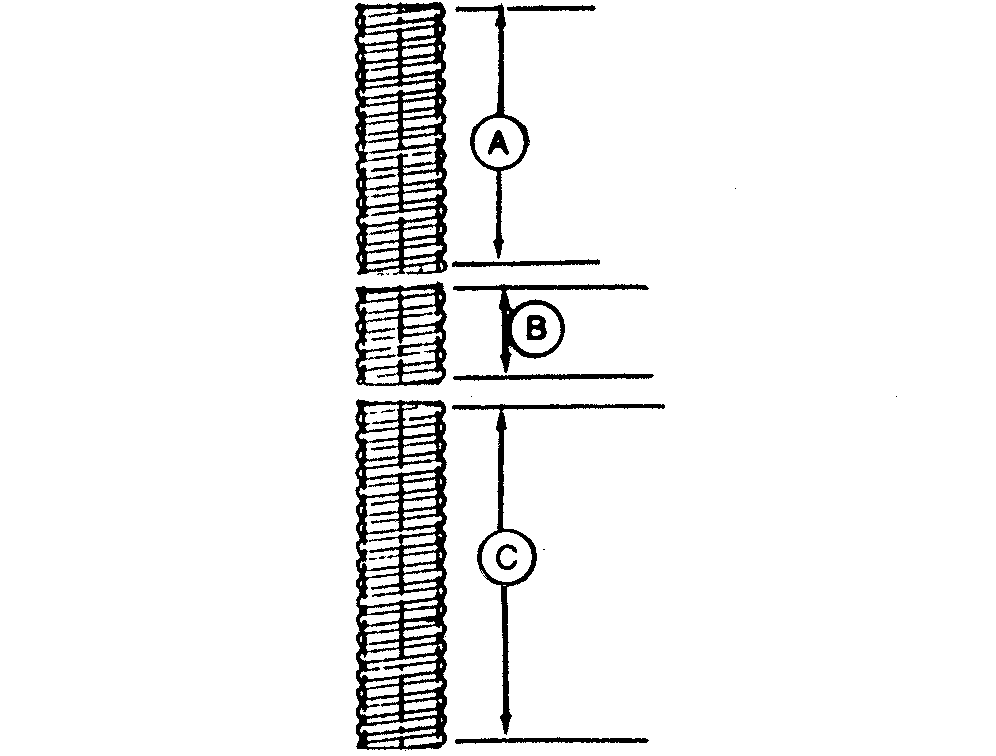

  2. A45167
    A45167-UN-05NOV98

    A - 8 Rib Section

    B - 51 mm (2 in.) Section

    C - Seed Tube Hose Section

    Count 8 ribs from the top of each seed tube hose and cut. KEEP the 8 rib sections (A) for future use.


  3. Measure 51 mm (2 in.) from top of seed tube hoses, and cut again. DISCARD the 51 mm (2 in.) sections (B). KEEP the remaining seed tube hose sections (C) for future use.

  4. NOTE: Top of sensor has wire lead coming out.

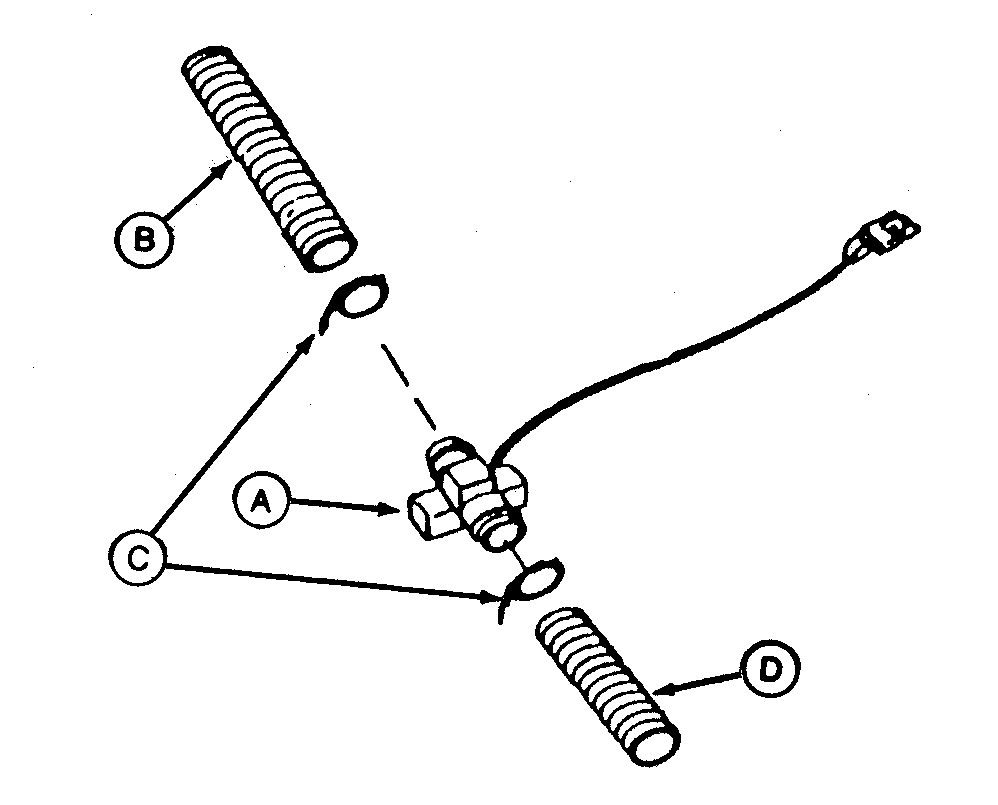

    A45168
    A45168-UN-05NOV98

    A - Sensor

    B - 8 Rib Section

    C - Tie Strap

    D - Seed Tube Hose Section

    Insert top of sensor (A) in 8 rib section of seed tube hose section (B). Make sure to insert flange of sensor into the third rib of the seed tube hose section. Attach seed tube to sensor with tie strap (C) between flange and sensor body.


  5. Insert bottom of sensor (A) in remaining seed tube (D). Make sure to insert flange of sensor into the third rib of the seed tube. Attach seed tube to sensor with tie strap (C) between flange and sensor body.

  6. Install seed tube hoses with sensors on drill.

OUO6074,0000003-19-20120315
