Install Seed Tubes—MAXEMERGE™ Plus Row Units

1.
   A47458-UN-04JUN01


   A47459-UN-04JUN01


   A47460-UN-04JUN01


   A47461-UN-04JUN01

   A - Cover

   B - Spring Pin

   C - Drilled Pin

   D - Hook

   E - Alignment Pin

   F - Seed Tube

   G - Tabs

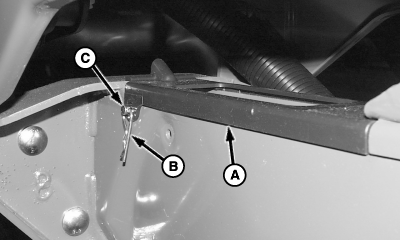

   Remove spring pin (B) and drilled pin (C). Lift cover (A) off planting unit.

---

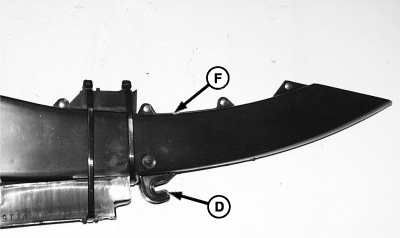

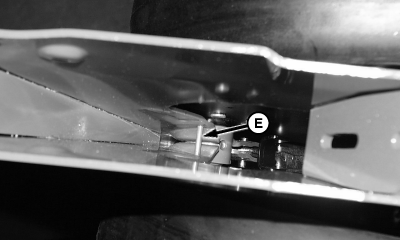

2. Insert seed tube (F) into planting unit so the hook (D) locks on alignment pin (E).

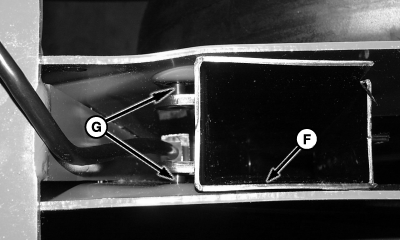

3. Position seed tube so tabs (G) lock into holes.

4.
   A47534-UN-13JUN01


   A47462-UN-04JUN01

   A - Cover

   B - Frame

   C - Front Tab

   D - Harness Slot

   E - Drilled Pin

   F - Spring Pin

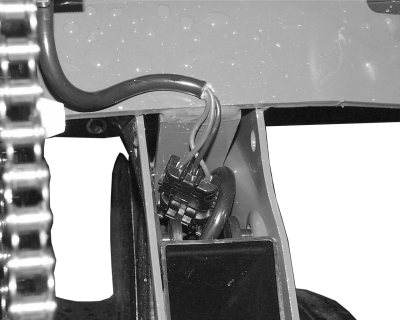

   Connect monitor harness to sensor harness and place plug under cover (A).

---




5. NOTE: Route wire through harness slot (D).

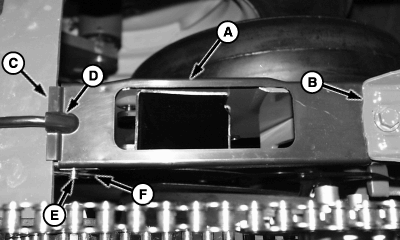

   Install cover (A) with rear tab under the frame (B) and front tab (C) over the frame.

6. Install drilled pin (E) and spring pin (F).

7.
   A47537-UN-13JUN01


   A47538-UN-13JUN01

   A - Tie Bands

   B - Harness

   C - Plate

   Attach harness to planting unit with tie bands (A).

---




8. Coil excess harness (B) behind plate (C) and attach tie band.
