COMPUTER TRAK™ 150 Row Configuration For 4, 6, and 8 Row Monitor

1. NOTE: The same monitor is used for 4, 6, and 8 row applications.


   H41828-UN-18APR90

   The consoles are shipped in an 8 row configuration. If a 4 or 6 row console is desired, carefully remove bezel with a small screwdriver.

---




2.
   A52073-UN-04JUN03


   A51990-UN-07MAR03


   A51991-UN-07MAR03

   A - Switch

   B - Lamps One And Eight

   C - Lamps Two And Seven

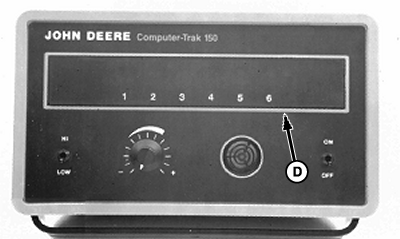

   D - New Bezel

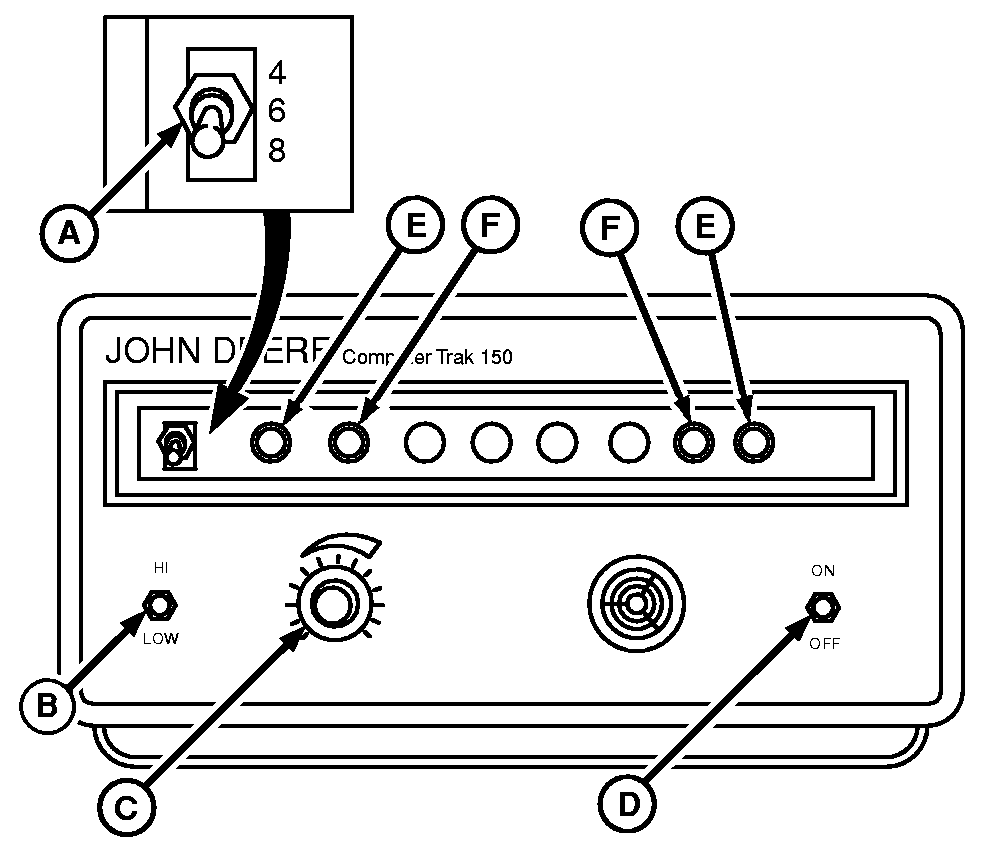

   Position switch (A) to the correct number of rows.

---




3. NOTE: To install or remove lamps, simply push and twist. Twist clockwise to insert or counterclockwise to remove.

   Remove lamps one and eight (B) to convert to a six row monitor.

   Remove lamps two and seven (C) in addition to lamps one and eight to convert to a four row monitor.

4. Install new bezel (D) with correct number of rows.
