COMPUTER TRAK™ 150 Row Configuration For 10 and 12 Row Monitor

1.
   H41828-UN-18APR90

   Carefully remove bezel with small screwdriver.

---




2. NOTE: To install or remove lamps, simply push and twist. Twist clockwise to insert or counterclockwise to remove.

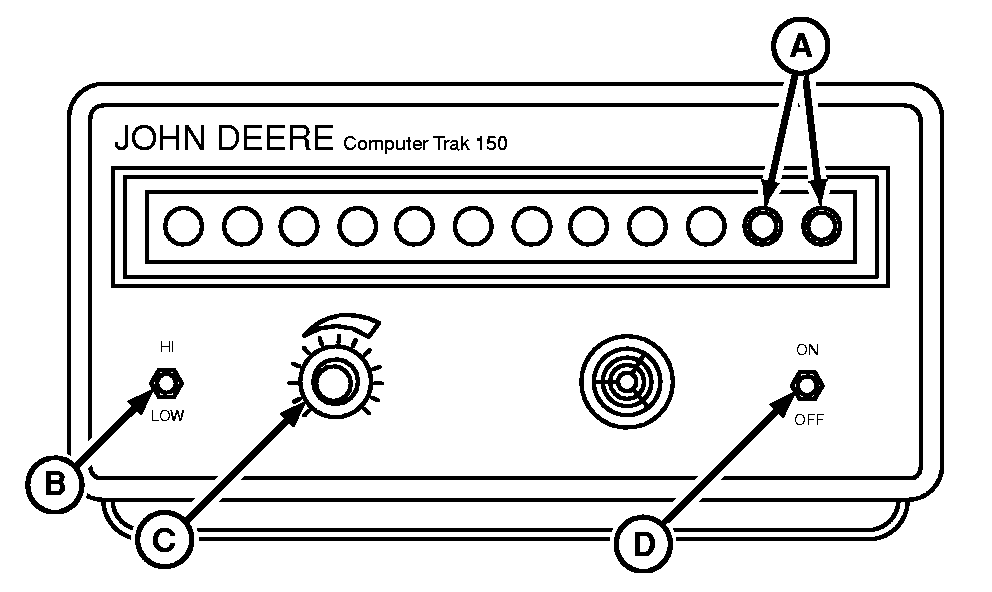

   A51993-UN-04JUN03

   A - Lamps

   Remove two right-hand lamps (A) for 10 row application. Install all lamps for 12 row application.

---




3. Install bezel labeled with correct number of rows.
