Setting High Population Limit

NOTE: Rows must be turned ON for a warning to occur. See TURNING ROWS ON/OFF in this section.

When the monitor detects any row sensor with seed population counts in excess of the high limit, the monitor displays HI WARN, sounds an alarm and locks onto the row number giving the reading. The alarm will sound every 1/200th of an acre (which that row travels) as long as the limit is being exceeded. When setting high population limits, add 50 percent to desired population as a starting value. When actual planting population is displayed, HI WARN limit may be changed to a closer tolerance. The closer the tolerance is set to actual population, the more frequently alarms may sound.

When planting volume metered or small seeds, pounds-per-acre values will have to be converted into seeds-per-acre values for monitor entry. Refer to planting rate chart information in operator's manual for average number of seeds per pound. Multiply average seeds per pound BY pounds-per-acre rate to roughly determine average seeds-per-acre.

1.

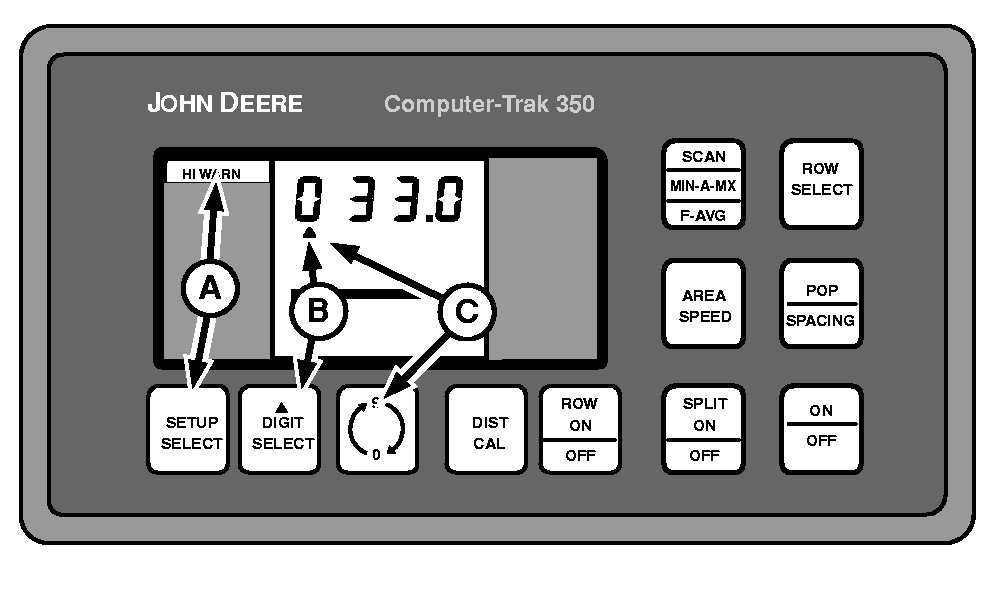

   A49586-UN-26JUL02

   A - SETUP SELECT Switch

   B - DIGIT SELECT Switch

   C - 0-9 Switch

   Repeatedly press SETUP SELECT switch (A) until display shows HI WARN in left-hand column.

---




2. NOTE: Each whole number represents 1000 seeds per acre. In example shown, 033.0 represents a 33 000 population limit.

   Repeatedly press DIGIT SELECT switch (B) until triangle is below the number to be changed.

3. Touch 0-9 switch (C) until desired number is displayed.
