Turning Rows On/Off

1. NOTE: See SPLIT ON/OFF for split row applications.


   A49589-UN-03SEP02


   A52070-UN-19MAR03

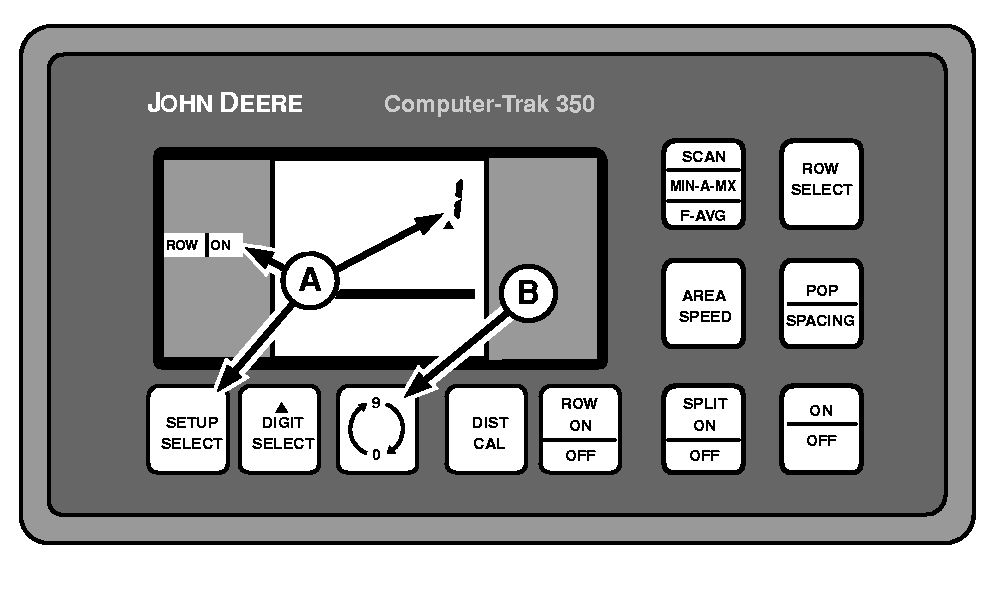

   A - SETUP SELECT Switch

   B - 0-9 Switch

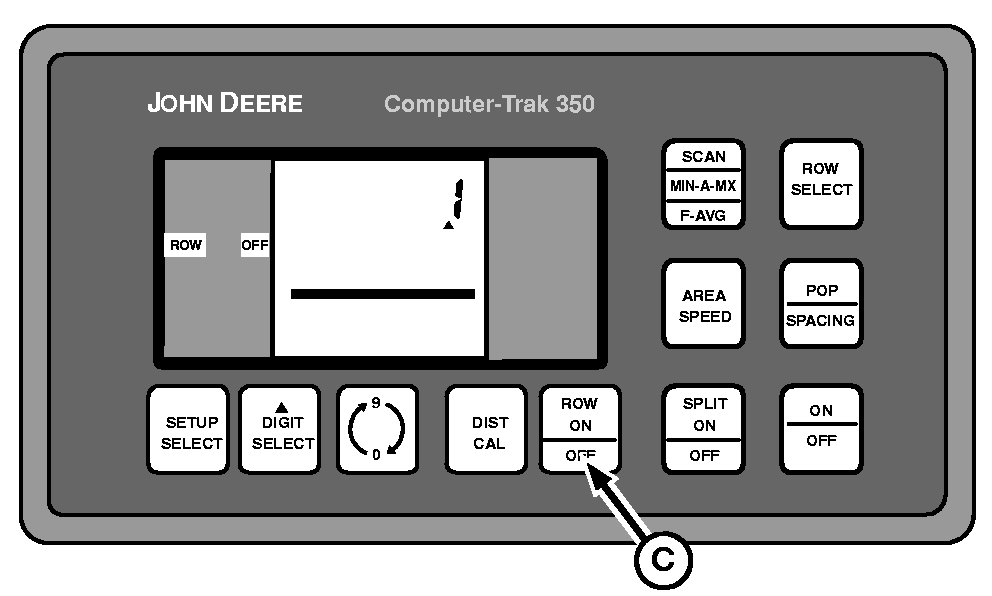

   C - ON/OFF Switch

   Repeatedly press SETUP SELECT switch (A) until the display shows ROW ON or OFF in left-hand column.

---




2. Each time the 0-9 switch (B) is pressed, the next row number will be displayed.

3. NOTE: Rows that have been turned OFF will remain in memory even if monitor is turned OFF.

   Press ROW ON/OFF switch (C) to turn each row on or off, as desired.

   Rows that are turned off will not be monitored, but are still used in area calculations.

   For normal planting, all rows should be ON.
