Powering Monitor On

A49597
A49597-UN-26JUL02

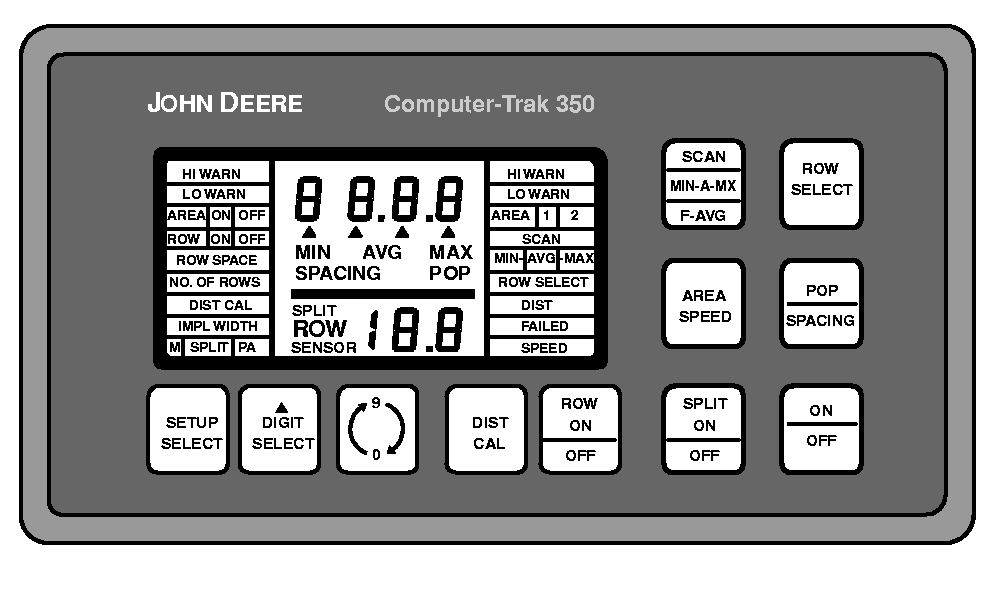

Immediately after ON/OFF switch is pressed the initial POWER-UP display will be shown.

A49598
A49598-UN-26JUL02

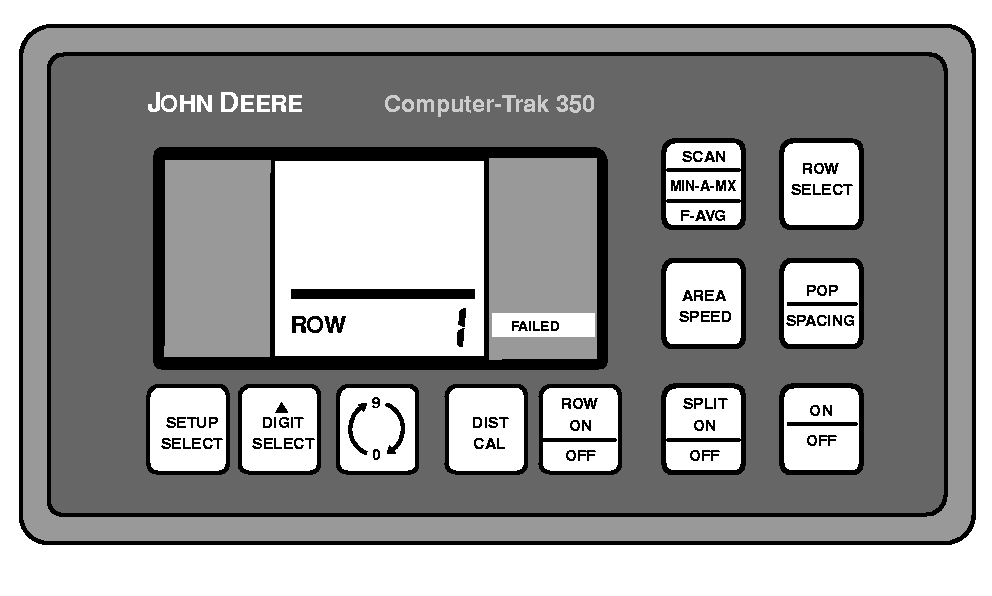

Row 1 Failed Illustrated

The display will cycle through all rows and display row sensors FAILED, if machine is stopped.

If a setup message is displayed, each setup value must be examined for a possible change and to verify correct setup values.

Correct any value that has changed and then press any one of the right-hand switches to operate the monitor.

COMPUTER TRAK is a trademark of Deere & Company

OUO6074,0000702-19-20030325
