Area/Speed

NOTE: The monitor will only display a decimal point up to 999.9. Further area readings will be displayed as whole numbers (1000, 1001, 1002). If a decimal point is desired, it will be necessary to reset display to 000.0. See AREA COUNTERS 1 AND 2 in COMPUTER TRAK 350/450 Monitor Setup section.

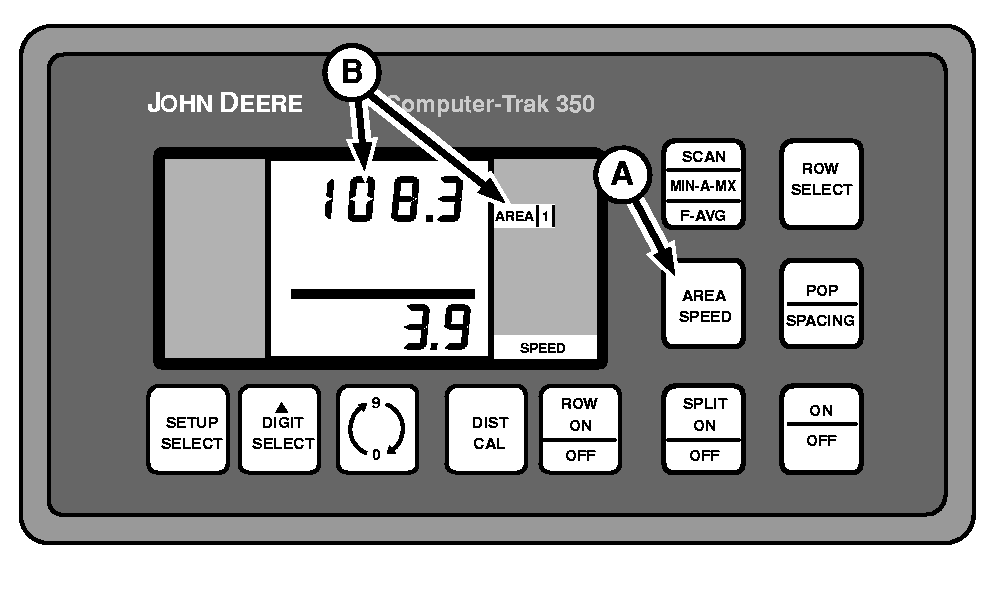

A52090
A52090-UN-28MAR03

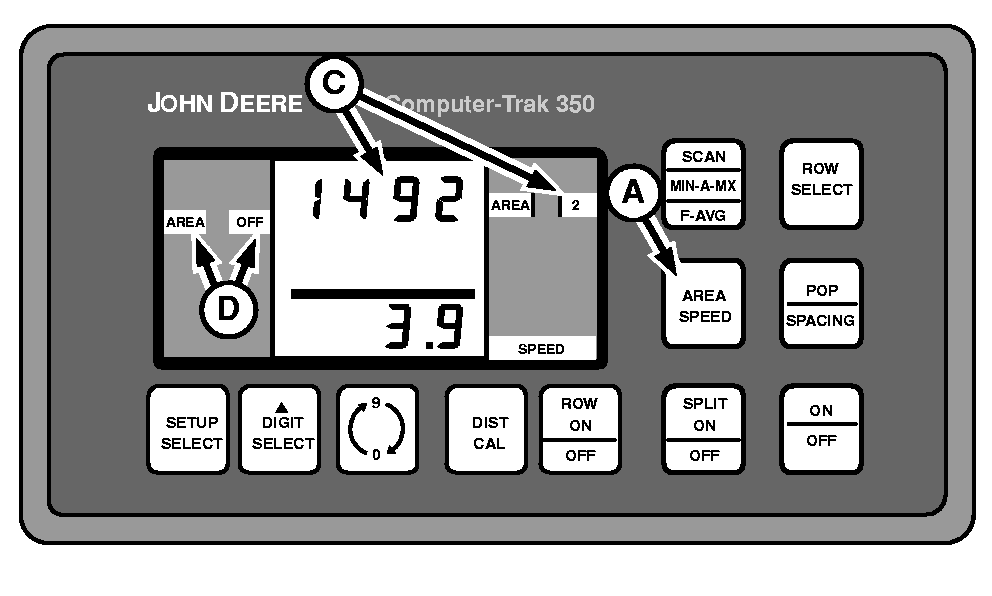

A52089
A52089-UN-28MAR03

A - AREA SPEED Switch

B - AREA 1

C - AREA 2

D - AREA OFF

Repeatedly press AREA SPEED switch (A) to toggle between AREA 1 (B) and AREA 2 (C) counters.

If an area counter is turned off, AREA OFF (D) will appear in left-hand column. AREA OFF will not appear in left-hand column, if area counter is turned on. To turn area counters on and off or to reset counters, see AREA COUNTERS 1 AND 2 in COMPUTER TRAK 350/450 Monitor Setup section.

COMPUTER TRAK is a trademark of Deere & Company

OUO6074,0000705-19-20030325
