Row Spacing

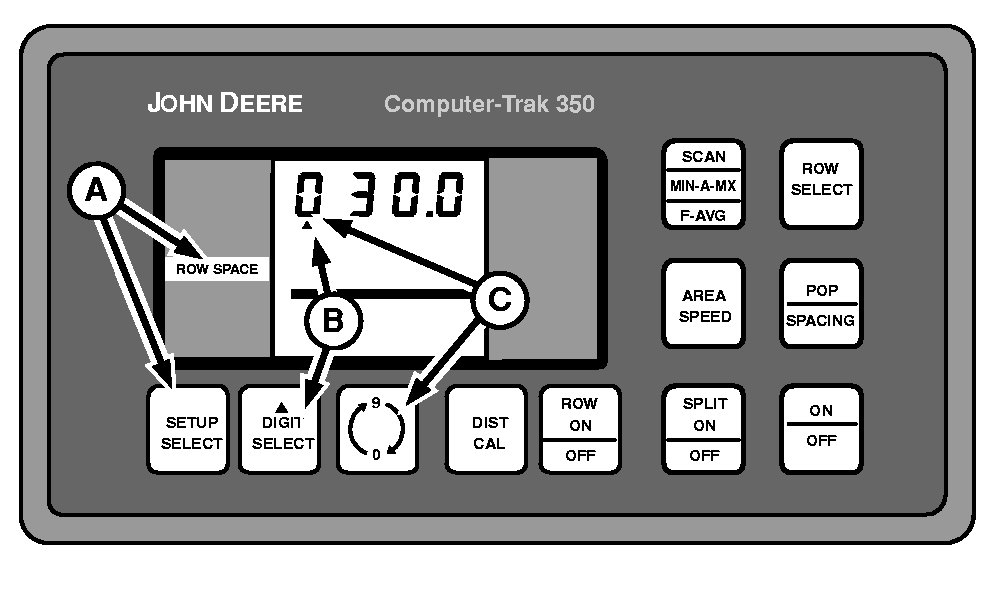

NOTE: Display shows a 30 in. row spacing example.

1.
   A49591-UN-26JUL02

   A - SETUP SELECT Switch

   B - DIGIT SELECT Switch

   C - 0-9 Switch

   Repeatedly press SETUP SELECT switch (A) ROW SPACE is displayed in left-hand column.

---




2. Repeatedly press DIGIT SELECT (B) until triangle is below number to be changed.

3. NOTE: If row spacing is less than one or greater than 250, the monitor will be forced into a FORCED SETUP STATE. The monitor will not acknowledge other selections until set to a proper row spacing.

   Touch 0-9 switch (C) until desired number is shown.

   1890 Machines Only: Each meter supplies seed to two rows. Row spacing entered into monitor must be double the machines row spacing.

   Changing the row spacing will automatically recalculate IMPLEMENT WIDTH.
