Row Failed Messages
A49605-UN-26JUL02

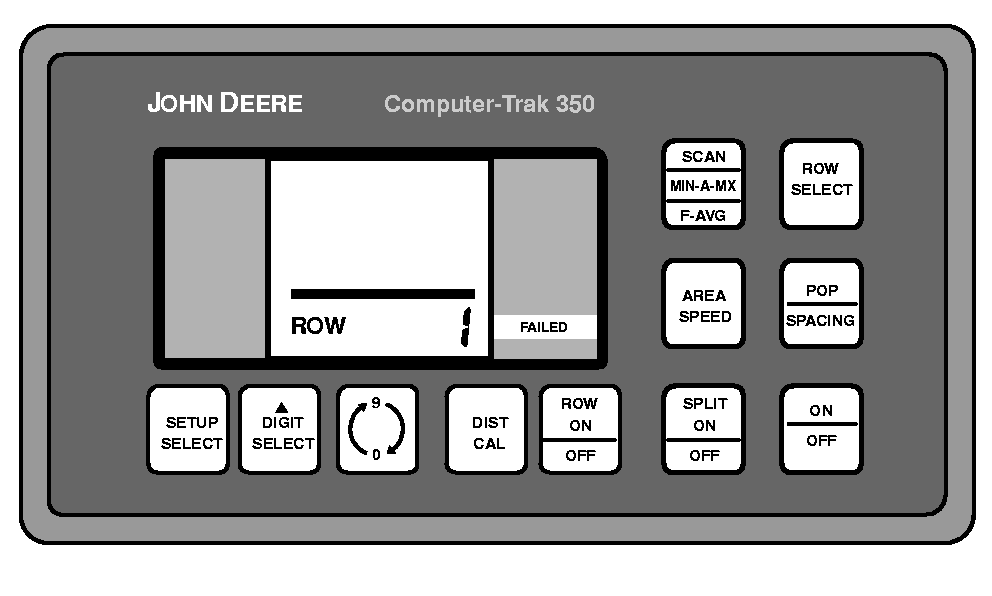

Row 1 Failed Illustrated
H41863-UN-18APR90
A - Alarm Cover
When system is in operation, if seed rate of any row falls below two seeds per second, the alarm will sound and the failed row numbers will be displayed without a population. The messages ROW and FAILED are displayed and the audible alarm sounds continuously. This overrides any other display.When machine is stopped, the monitor continues to display the failed message, but the alarm will stop after a few seconds. When machine is stopped, the right-hand switches can be operated to review populations for the last 1/200th of an acre per row.
The loudness of the audible alarm can be changed by rotating the alarm cover (A) on bottom of monitor.
When planting is resumed, if the problem causing the alarm has not been corrected, the alarm will sound and the message will be displayed. If the condition has been corrected, the monitor resumes the display mode it was in before the failure occurred.
|
COMPUTER TRAK is a trademark of Deere & Company |
OUO6074,0000708-19-20030326 |
