Distance Counter Mode

A49623
A49623-UN-26JUL02

A49624
A49624-UN-26JUL02

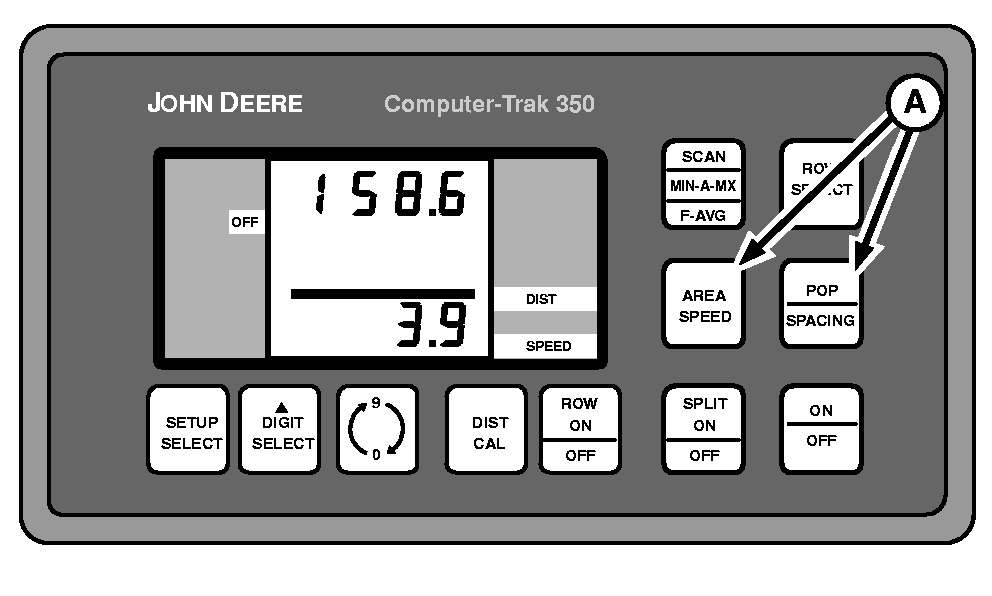

A - AREA SPEED and POP/SPACING

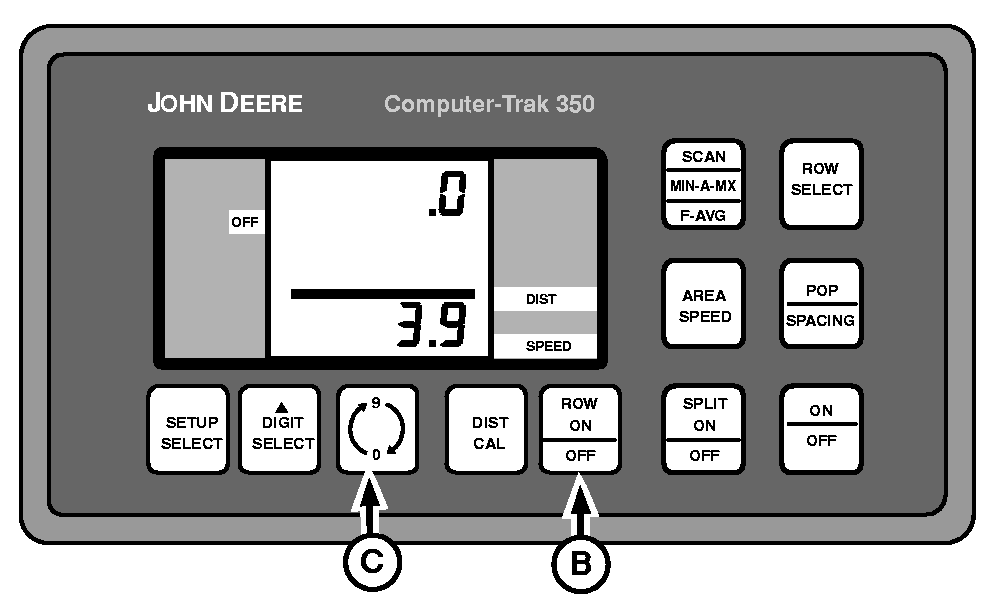

B - ROW ON/OFF Switch

C - 0-9 Switch

Distance Count Mode allows the operator to measure distance traveled based on radar information.

To enter this mode, press AREA SPEED and POP/SPACING (A) simultaneously. DIST and SPEED will be displayed in lower right-hand display. Current speed is displayed on bottom portion of screen.

Press ROW ON/OFF switch (B) to turn distance counter ON and OFF.

Press 0-9 switch (C) to reset counter to zero.

To exit this function, press SCAN, ROW SELECT, AREA SPEED, POP/SPACING or SETUP SELECT.

COMPUTER TRAK is a trademark of Deere & Company

OUO6074,000070C-19-20030326
