Point Row Planting

A49613
A49613-UN-03SEP02

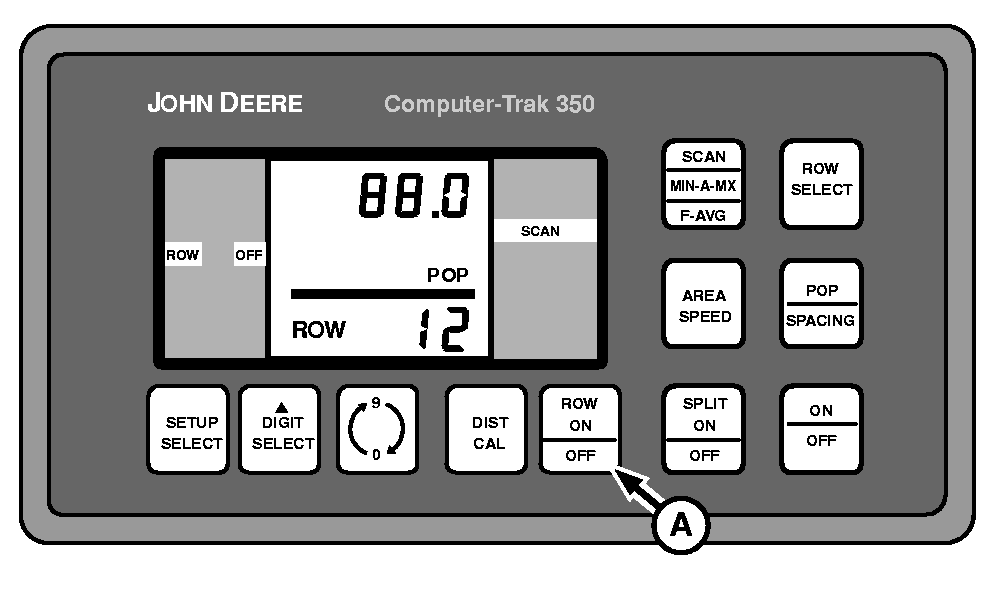

A - ROW ON/OFF Switch

When half-width disconnect is activated or any individual row units are disabled, row failure alarms can be deactivated by pressing ROW ON/OFF switch (A). The monitor will stop monitoring turned off rows and ROW OFF will be displayed in left-hand column as a reminder. Area is calculated using active rows only. The monitor will return to normal operation when seed flow is detected in ANY disabled row.

EXAMPLE: (12-Row Planter) If the left-hand clutch is disengaged, normal planting will show ROWS 1-6 FAILED. Pressing the monitor ROW ON/OFF switch will clear failed messages and continue scanning operative rows only. When clutch is re-engaged, seed flow will be detected in rows 1-6 and monitor will begin scanning all rows again.

COMPUTER TRAK is a trademark of Deere & Company

OUO6074,000070F-19-20030327
