Install Seed Tubes—PRO-SERIES™ Row Units

1.

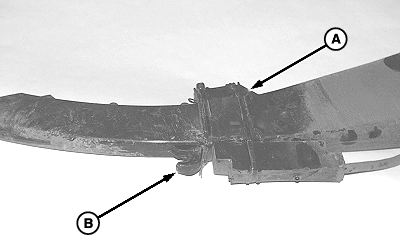

   A50396-UN-27SEP02

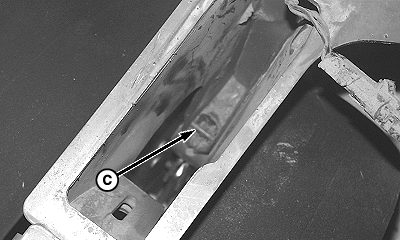

   A50395-UN-27SEP02

   A - Seed Tube

   B - Hook

   C - Alignment Pin

   Insert seed tube (A) into row unit, aligning hook (B) with alignment pin (C).

---




2.

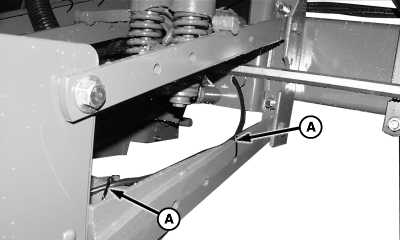

   A47537-UN-13JUN01

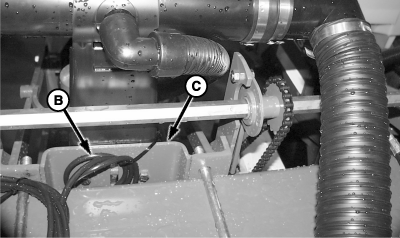

   A47538-UN-13JUN01

   A - Tie Bands

   B - Harness

   C - Plate

   Attach harness to planting unit with tie bands (A).

---




3. Coil excess harness (B) behind plate (C) and attach tie band.
