Low-Pressure Drain Connection

IMPORTANT: To avoid damage to fan motor, tractor must be equipped with a low-pressure drain connection (LESS THAN 689 kPa [6.89 bar] [100 psi]), compatible with Case Drain Connection Kits. See Case Drain Connection Kits table.

IMPORTANT: Only the connection kits listed in the Case Drain Connection Kits table can be used on John Deere tractors. If low-pressure drain connection kit is already installed, ensure it matches what is listed on table.

Order one of the following kits when a John Deere tractor is used, or see tractor manufacturers dealer for a suitable connection kit.

Case Drain Connection Kits
Tractor Model Kit Number
30-60 Series Row Crop BA27604
30-50 Series 4WD BA27604
60 and 70 Series 4WD BA27601
8000 Series AR114664
9000 Series RE164984



NOTE: John Deere Connection Kits include Installation Instructions.

A46970

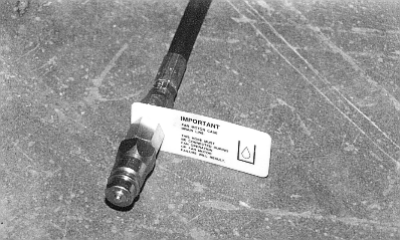

Connection Kit BA27058 Shown

AG,OUO6023,974 -19-21JUL00-1/1
