Connecting Remote Seeder Switch Wiring (If Equipped)

As openers lower, remote switch closes to engage main seed cart drive clutch.

OUO6023,000014B -19-08DEC00-1/2

Attach cable from switch (A) to "LIFT" connector (B) at the rear of the seed cart.


A-Switch
B-"Lift" Connector

A37887

Remote Switch

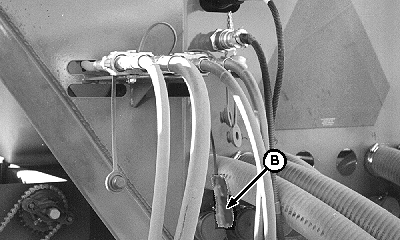

A42104

Tow-Between Shown

OUO6023,000014B -19-08DEC00-2/2
