Installing Lever Lock Clip-Tractors With Mechanical SCV Controls

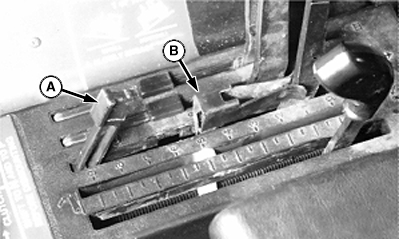

1. Lift float lock-out stop (A).

2. Squeeze sides of lock clip (B) and insert into groove as shown.


A-Lock-Out Stop
B-Lock Clip

N42122FD

OUO6076,0000062 -19-08DEC00-1/2

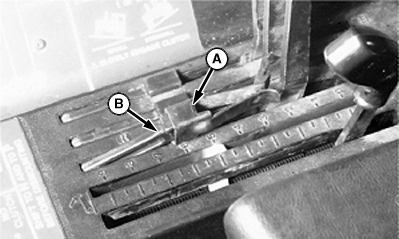

3. Slide lock clip (A) over lock-out stop (B).

4. Push lock-out stop and lock clip down.

5. Push handle forward to secure in clip.


A-Lock Clip
B-Lock-Out Stop

N42122FE
N42122FG
N42122FH

OUO6076,0000062 -19-08DEC00-2/2
