Installing Frame QUIK-TATCH™ Weights

causym CAUTION: Each QUIK-TATCH ™ weight weighs 45.4 kg (100 lb). Use proper lifting equipment to avoid personal injury when installing.

IMPORTANT: Additional weight may be needed when working in hard soil conditions without row markers.

NOTE: Wing weights are not to be used with markers.

QUIK-TATCH ™ weights are attached to rear of center frame and wing ends to increase down-pressure. A maximum of 14 weights can be installed at rear of center frame. Each wing can hold up to 6 weights.

QUIK-TATCH is a trademark of Deere & Company.

OUO6076,00001AA -19-25APR02-1/2

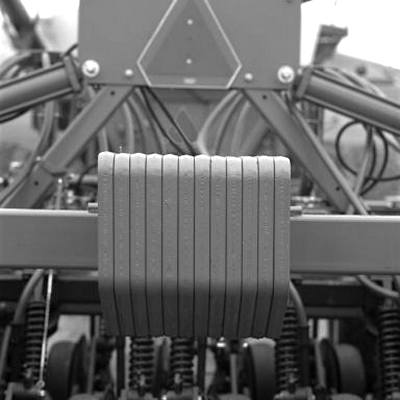

1. Place two center weights on frame, one on each side of welded pin.

2. Install equal number of weights on both sides of center weights and attach with tie bolt hardware.

Center Section Hardware
Description (Part No.) Qty. Required
Retainer (AR68801) 2
5/8 x 17-1/2 in. Gr. 5 Cap Screw (R59761) 2
Washer (24M7241) 2



Wing Section Hardware
Description (Part No.) Qty. Required
Lock Nut (K40015) 4
5/8 x 8-1/2 in. Gr. 8 Cap Screw (08H4248) 4
Washer (24M7241) 8



See your John Deere dealer to order QUIK-TATCH ™ weights and attaching hardware.

A48953
A51933

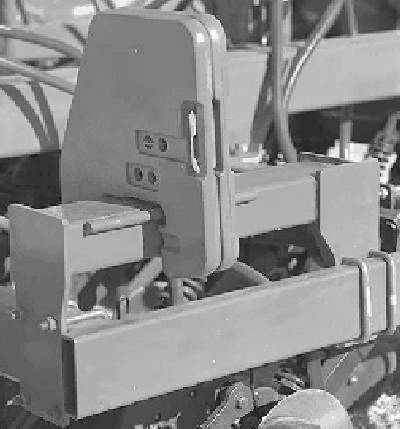

Wing Frame

QUIK-TATCH is a trademark of Deere & Company.

OUO6076,00001AA -19-25APR02-2/2
