Connecting Hydraulic Hoses-7020 Series (7720, 7820 and 7920)

Planter Hose Connections
Vacuum Motor Case Drain (if equipped)a A (Must be connected first)
Hose Identification Pressure Return
Lift Assist Wheels (1710/1720 12 Row)(if equipped) H G
Lift Assist Wheels (1720 16 Row)(if equipped) C
Vacuum System (if equipped) or Independent Markers K L
Variable Rate Drive on Power Beyond with Load Sense (E) F D
aCase drain hose MUST be attached PRIOR to pressure and return hoses being connected.



IMPORTANT: Vacuum RETURN hose, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes. This also applies to variable rate drive when connected to an SCV.

This table shows connections for the maximum number of common components when a tractor is equipped with three SCV's.

This table shows connecting lift assist wheels to an SCV. Lift assist wheels may also be connected to tractor hitch, allowing the SCV to be connected to other functions. See procedures in this group for more information about hitch controlled lift assist

Vacuum motor may be controlled using tractor SCV, or may be controlled by planter flow control valve. If using tractor SCV, planter flow control valve should be fully open.

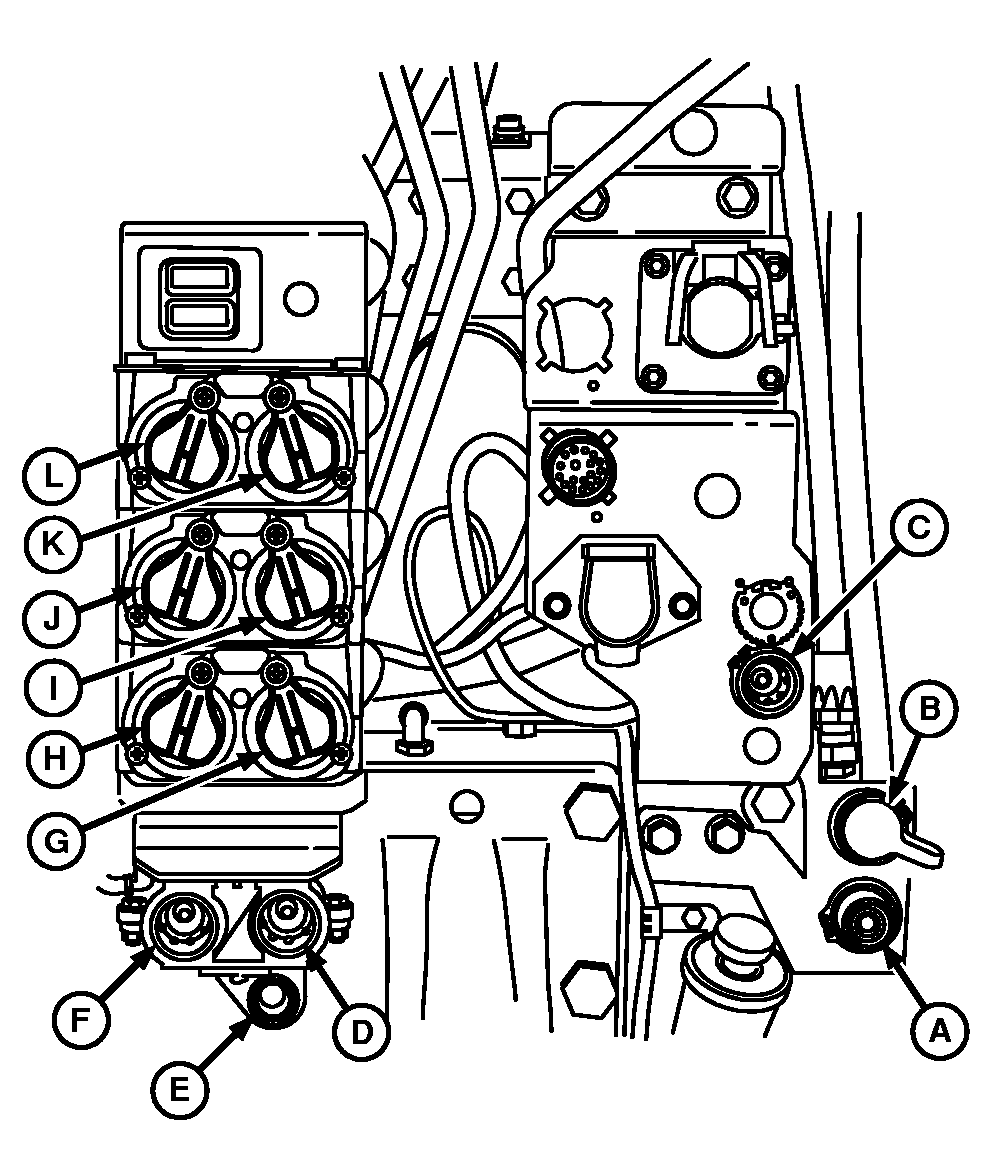

A53308


A-Sump Port (Case Drain Connection)
B-Motor Return
C-Hitch Port
D-Return Port (Power Beyond Return)
E-Load Sense Coupler (Power Beyond Load Sense)
F-Auxiliary Pressure Port (Power Beyond Pressure)
G-SCV I (Retract)
H-SCV I (Extend)
I-SCV II (Retract)
J-SCV II (Extend)
K-SCV III (Retract)
L-SCV III (Extend)

OUO6435,0001AC1 -19-07MAR05-1/2

  • For 1720 12-RN and 16-RN machines with wing lift kit, the wing lift cylinder my be plumbed directly to the lift-assist wheel plumbing or tractor rockshaft.
  • For 1710 and 1720 Planters, a diverter valve if available to connect independent markers and wing fold on one SCV.
  • If connecting a 1710 or 1720 planter with vacuum, lift-assist, and variable rate drive to a tractor that has only 3 SCVs and is not equipped with power beyond, markers can be connected to lift assist wheel hoses for auto operation.
  • 1720 16-Row Planters come equipped with dual vacuum motors and are set-up for each vacuum motor to have its own SCV. This configuration requires a minimum of 4 tractor SCVs. If 4 SCVs are available; connect the vacuum motors to SCV's I & II, Frame Fold to SCV III, Markers to SCV IV, and variable rate drive to power beyond. Vacuum may then be controlled using tractor SCV or planter flow control valves. If using tractor SCV, planter flow control valves should be fully open. If tractor is equipped with only 3 SCVs, hydraulic hoses for vacuum motors must be teed together and connected to a single SCV and vacuum must be controlled with planter flow control valves.
