Folding Machine (Manual Fold Only)-6-Row Narrow

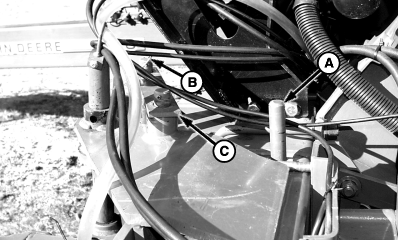

1. Raise machine and lock markers in the up position.

2. Remove quick-lock pin from wing-lock pin (A) and remove wing-lock pin.

3. Remove quick-lock pin (B) and lift wing-lock strap (C) from post.


A-Wing-Lock Pin
B-Quick-Lock Pin
C-Wing-Lock Strap

A46934

AG,OUO1074,1731 -19-22MAR04-1/3

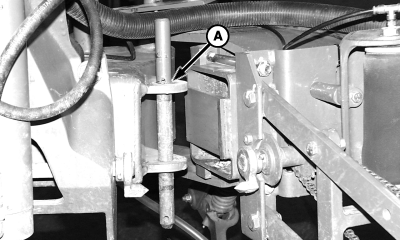

4. Partially fold wing and place wing-lock pin in storage position (A) and install quick-lock pin.

NOTE: Be sure not to pinch any hoses when folding.

5. Fold wing.


A-Storage Position

A46587

AG,OUO1074,1731 -19-22MAR04-2/3

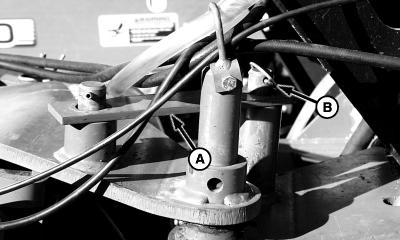

6. Place wing-lock strap (A) on post and install quick-lock pin (B).


A-Wing-Lock Strap
B-Quick-Lock Pin

A46935

AG,OUO1074,1731 -19-22MAR04-3/3
