Replacing Feed-Cup or Radial Bean Meter with Finger Pick-Up

IMPORTANT: Always clean out seed after use.

Store metering assemblies in a clean, dry place while not in use.

Feed-cup or radial bean meter assemblies can easily be interchanged with finger pick-up seed meters.

To replace feed-cup or radial bean meter with finger pick-up meter, proceed as follows:

1. Turn hopper upside down and remove two wing nuts (A).

2. Pull feed-cup or radial bean meter assembly straight up.

3. Position finger pick-up on hopper and attach with wing nuts removed in step 1.


A-Wing Nuts

H44523

Feed-Cup Metering Unit

H44516

Finger Pick-Up Metering Unit

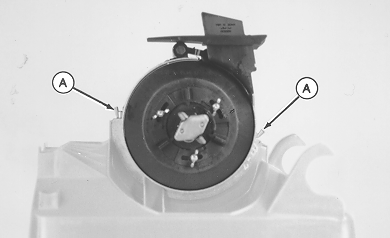

A40459

Radial Bean Metering Unit

AG,OUO6074,1188 -19-04AUG00-1/1
