Finding Transmission Sprocket Settings for Row Widths Not Shown in Operator's Manual
|
When desired population is known, use the following formula to find transmission sprocket settings for row widths not shown in seed charts. FORMULA: (A ÷ B) x C = D A = Desired row width in inches. B = Row width column in the seed chart (for crop being planted) nearest to desired row width. C = Seed population desired. D = Calculated comparison population value. The following example assumes corn will be planted (using vacuum meters with corn-30 cell disks) with |

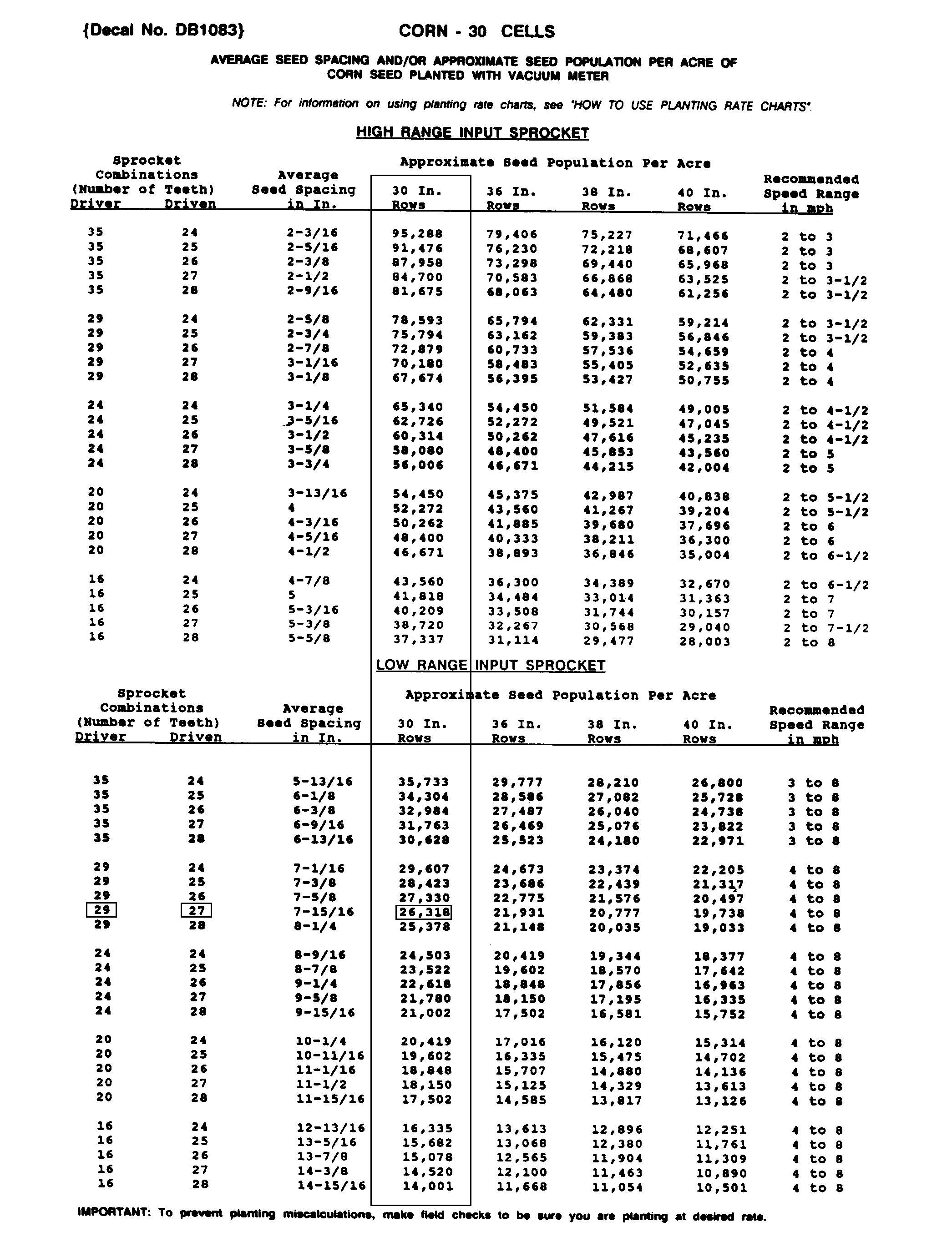

planting units set on 28 in. rows and a desired seed population of 28 000. Using seed chart for corn-30 cells, the row width nearest the desired row width is 30 in.
EXAMPLE: (28 ÷ 30) x 28 000 = 26 133 Find population value in chart nearest to calculated comparison population value (26 318 for this example). Use the sprocket combinations in the corresponding rows (29-tooth driver and 27-tooth driven for this example) to achieve desired population (28 000 for this example). |
