Storing the Machine

Store machine in RAISED position.

Install service locks on all wheel cylinders.

When planting is completed for one season, store machine under cover with all parts in operating condition.

Paint all parts which are chipped or worn and require repainting.

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and/or hoppers if direct contact is applied. Use caution, if power washing machine.

Clean machine thoroughly to remove dirt and trash which would hold moisture and cause rusting.

Lubricate machine as outlined in the Lubrication section and grease exposed cylinder rods.

Thoroughly lubricate chains with John Deere Multipurpose Spray Lube TY6350 at the beginning of the idle period.

IMPORTANT: Use precautions as recommended by chemical manufactures when handling part coated with seed treatments. Use proper skin, eye and respiratory protection.

Empty and clean seed hoppers.

Clean insecticide and/or herbicide hopper thoroughly as various chemicals may deteriorate the system components.

Inspect machine for worn or broken parts. See your John Deere dealer during the off season so that parts or service can be acquired when machine is not needed in the field.

Store machine in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

AG,OUO6074,1392 -19-04MAR04-1/3

Place handle for closing wheel down force in long slot to relieve tension on closing wheels.

Thoroughly flush liquid herbicide system with clean water. Disconnect from tractor and completely drain all lines and components to prevent damage from freezing.

Remove seed disks from meter. See VACUUM METER INSPECTION AND SERVICE in Service/Prior to Operation Every Season section.

CAUTION: Follow chemical manufacturer's precautions when handling parts coated with seed treatments. Use proper skin, eye and respiratory protection.

Clean meter housing, meter chamber and seed disk with mild detergent and soft brush.

AG,OUO6074,1392 -19-04MAR04-2/3

IMPORTANT: Store seed disks away from extreme heat or direct sunlight. Do not leave disks in the meters during the off season. Do not store under heavy parts.

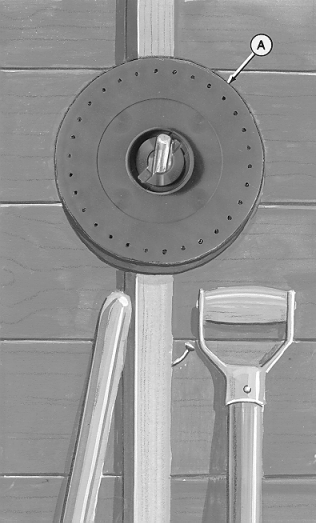

Store disks (A) in shipping box or hang on wall.

Clean vacuum manifold system.

Check for hydraulic leaks.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.

A-Disks

AG,OUO6074,1392 -19-04MAR04-3/3
