OMA82875: 1760 and 1760NT Drawn Conservation 6-RN, 8-RN, 8-RW and 12-RN Wing-Fold Planters, Block File: AG_OUO6074_1445_19

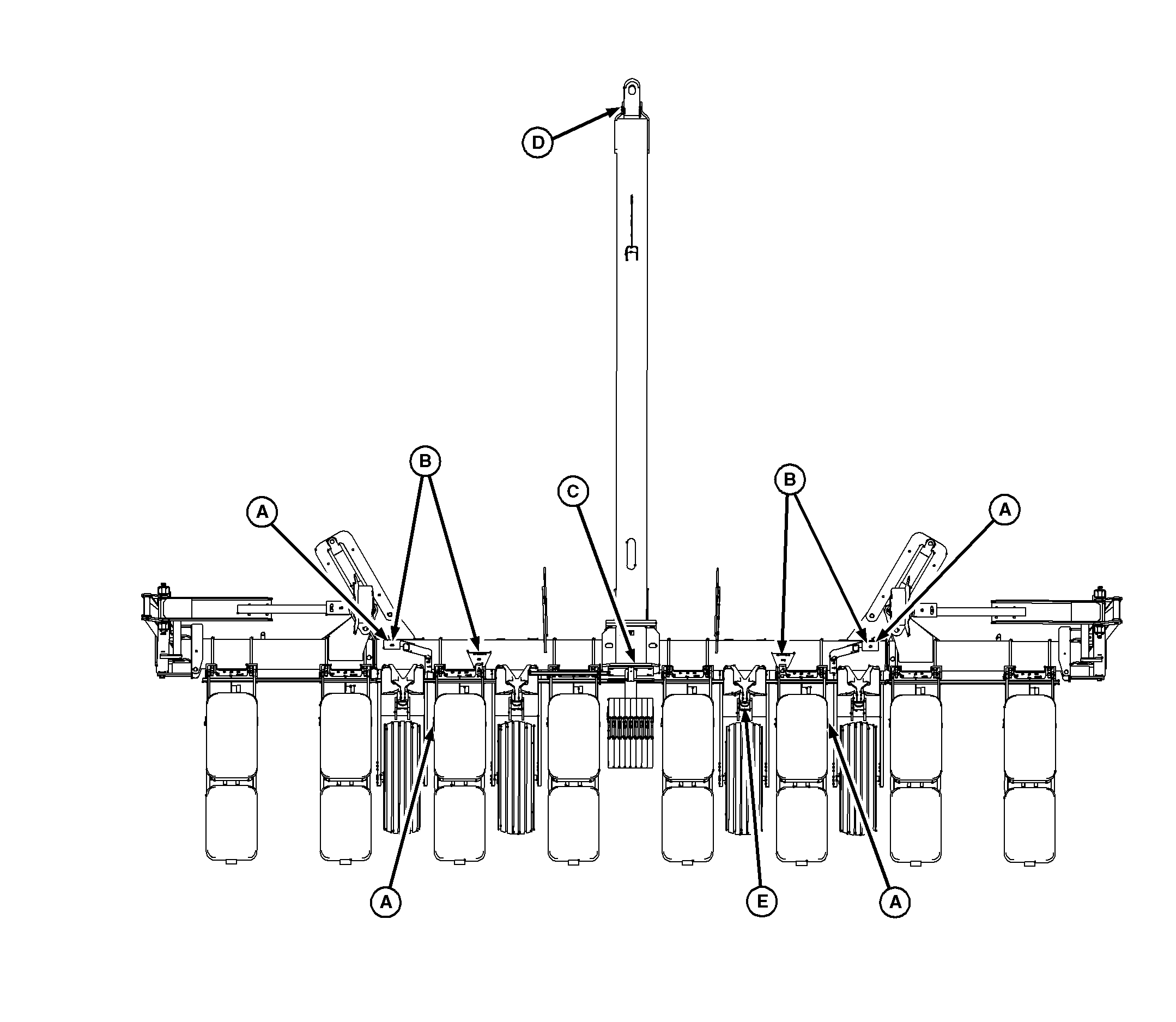

Safety Features

A-Reflectors
B-Roadway Transport Lights

C-Slow Moving Vehicle Emblem

D-Safety Tow Chain

E-Service Lock (All Wheels)

SAFETY FEATURES OF THE 1760NT 8-ROW NARROW PLANTER In addition to the safety features shown here, other components and systems, safety signs on the machine, and safety messages and

instructions in the Operators Manual contribute to the safe operation of this planter when combined with the care and concern of a capable operator.

AG,OUO6074,1445 -19-23NOV04-1/1
