Preparing Tractor Drawbar

Tractor drawbar should be approximately 480 mm (19 in.) from ground.

Use offset in tractor drawbar to position drawbar as close to 480 mm (19 in.) from ground.

Fasten drawbar at center of drawbar support.

A28875

AG,OUO6074,1469 -19-07AUG00-1/2

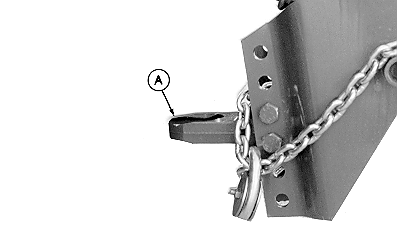

If machine is equipped with a hitch ring (A), tractor MUST have a hammer strap on drawbar.

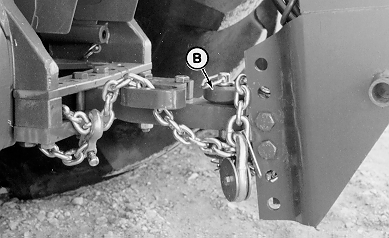

If machine is equipped with a hitch clevis (B), hammer strap MUST BE REMOVED from drawbar.


A-Hitch Ring
B-Hitch Clevis
