Lubrication-Beginning of Season

Lubricate with John Deere Multi-Purpose Lubricant or an equivalent SAE multi-purpose type grease at point (A).


A-Lubrication Point

A38362

Tillage Support Bracket

OUO1074,000015E -19-19MAR01-1/2

Lubricate at beginning of planting season with John Deere Multi-Purpose Lubricant or an equivalent SAE multi-purpose type grease at point (A).

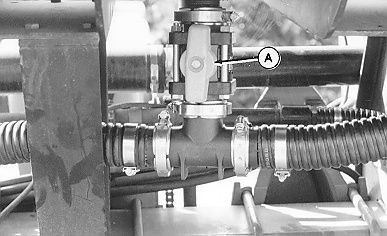

A-Shut-Off Valve

A44777

Shut-Off Valve for Liquid Fertilizer Attachment

OUO1074,000015E -19-19MAR01-2/2
