Lubrication-Every 10 Hours or Daily

Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.


A-Port
B-Port

A35811

Piston Pump

OUO1074,000015F -19-29APR05-1/3

A35784

Transmission Drive Chain

A38363

Gauge Wheels
A47144

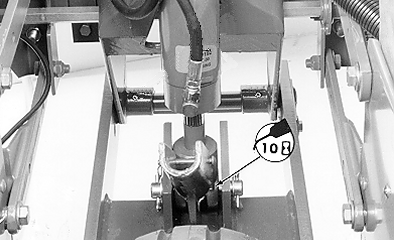

Wheel Cylinder Pin

A35812

Piston Pump Shafts

A56253

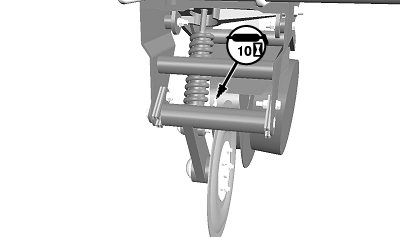

Frame Mounted Coulter

OUO1074,000015F -19-29APR05-2/3

NOTE: Grease lower pivot pins (2 places) and arm pivot every ten hours.

A47156

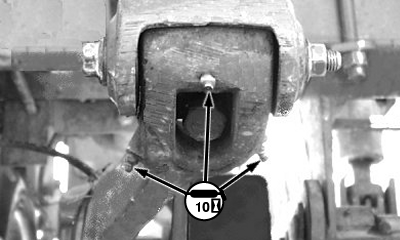

Single-Disk Fertilizer Opener

OUO1074,000015F -19-29APR05-3/3
