Lubrication-Every 50 Hours

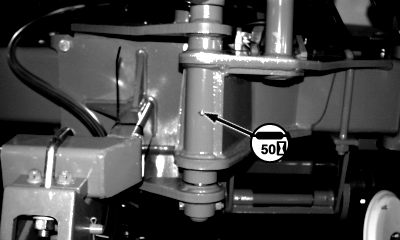

1760 12-Row Narrow Wing Pivot

Wing Pivot-6RN and 8RN

12-Row Narrow Flex Pivot Main Frame

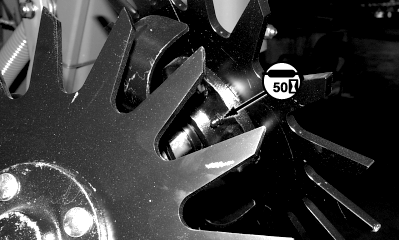

Row Cleaner

OUO1074,0000161 -19-19MAR01-1/3

NOTE: See SERVICING WHEEL BEARINGS in Service-As Required section if maintenance is required.

These anti-friction bearings are packed with grease at the factory. Every 100 hours, inspect bearing and adjust if necessary. Every 200 hours or before each planting season, whichever comes first, disassemble bearing, clean and repack.

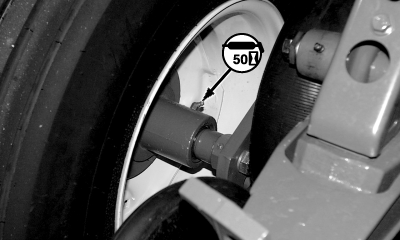

Carrying Wheel Bearing Hub

OUO1074,0000161 -19-19MAR01-2/3

NOTE: Oil lower spring pivot pins every 50 hours. Oil will prevent top of pin from rusting.

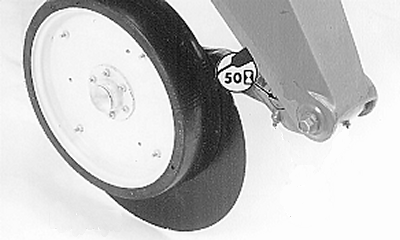

Single-Disk Fertilizer Opener

OUO1074,0000161 -19-19MAR01-3/3
