Lubrication-Every 200 Hours

NOTE: See COULTER MAINTENANCE in Service-Every 100 Hours section if maintenance is required.

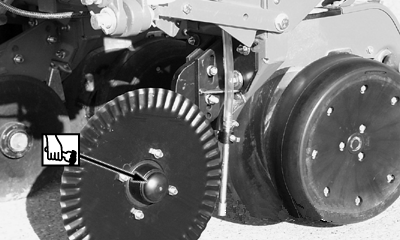

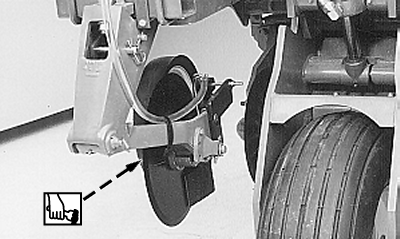

These anti-friction bearings are packed with grease at the factory. Every 100 hours, inspect bearing and adjust if necessary. Every 200 hours or before each planting season, whichever comes first, disassemble bearing, clean and repack.

OUO1074,0000163 -19-19MAR01-1/1
