106 L (3.0) Bushel Hopper Latch

Every 100 hours, check latches on 106 L (3.0 bu) hoppers to make sure they latch tight. If latches are loose, loosen latch cap screws (A) and adjust latch.

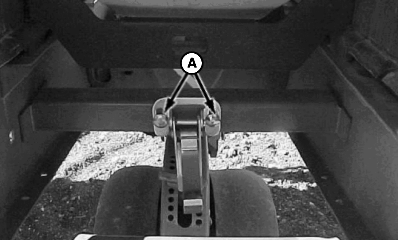

A-Cap Screws

A48635

106 L (3.0 bu) Hopper Latch

OUO1074,00013DF -19-01FEB02-1/1
