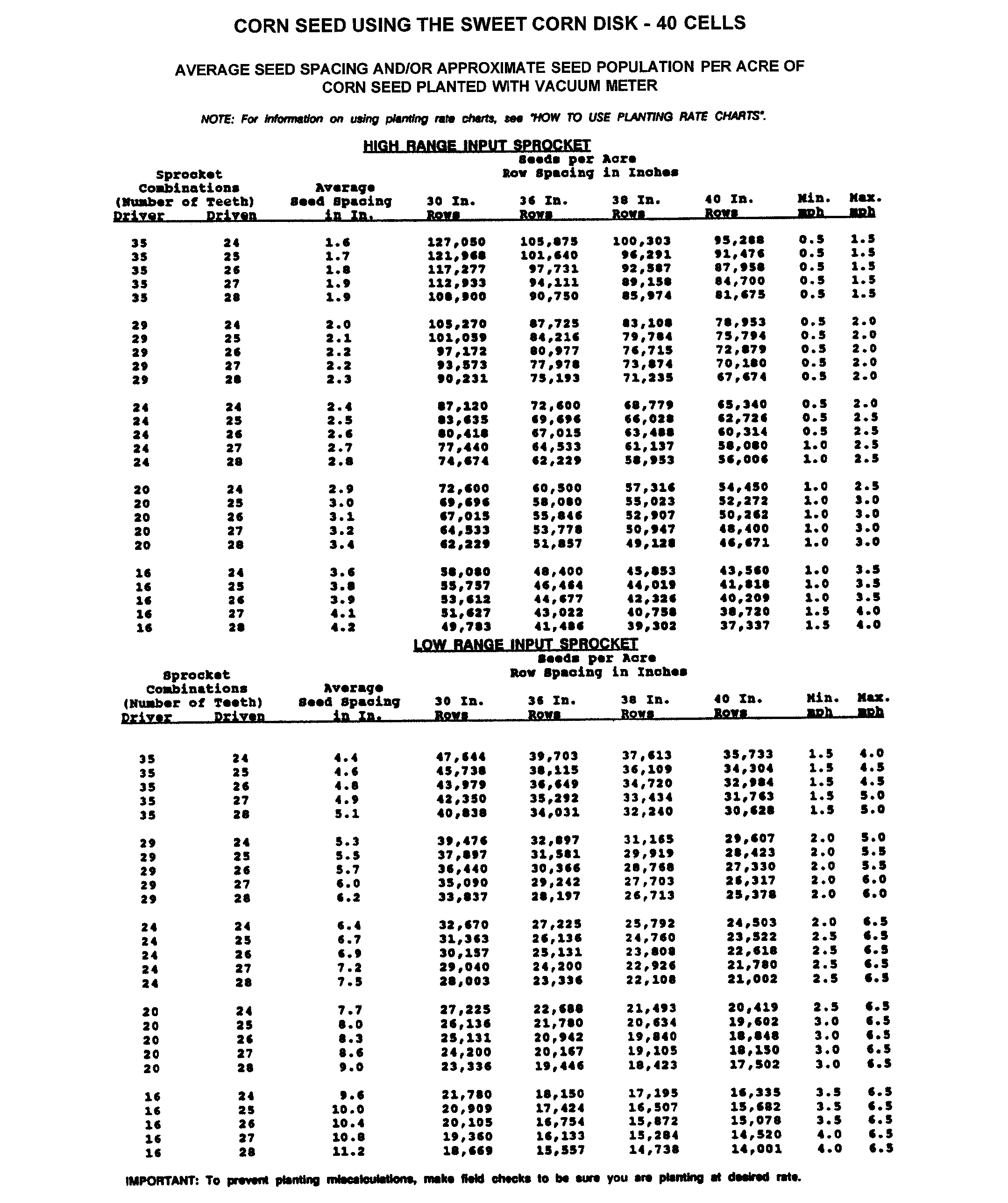

Corn Using Sweet Corn Disk-30 in. to 40 in. Rows-Meter Setup and Rate Chart

Move vacuum meter baffle tab (A) to upper position (B).

IMPORTANT: Use field checks to verify and fine tune the double eliminator setting.

Double eliminator should be positioned to cover from one quarter to one half of vacuum hole. The tooth to the far right of double eliminator (the one under adjusting screw) is used. Set double eliminator to one quarter position for seeds between 1980 seeds/kg (900 seeds/lb) and 4400 seeds/kg (2000 seeds/lb). Set double eliminator to one half position for seeds between 4400 seeds/kg (2000 seeds/lb) and 7040 seeds/kg (3200 seeds/lb).

Use regular (long) vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see VACUUM LEVEL FOR CORN USING A52391 OR A52904 SEED DISKS in Operating Vacuum Meter section.

A-Tab
B-Upper Position
