Sweet Corn-30 in. to 40 in. Rows-Meter Setup and Rate Chart

Move vacuum meter baffle tab (A) to upper position (B).

IMPORTANT: Use field checks to verify and fine tune the double eliminator setting.

Adjust double eliminator as follows:

Turn cam nut (C) to move top of double eliminator (D) toward center of housing as far as possible. Tighten screw (E).

Use regular (long) vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see VACUUM LEVEL FOR SWEET CORN in Operating Vacuum Meter section.


A-Tab
B-Upper Position
C-Cam Nut
D-Double Eliminator
E-Screw

A35259

Upper Baffle Position

A47009

Regular (Long) Brush

OUO6074,00008EE -19-04DEC03-1/2

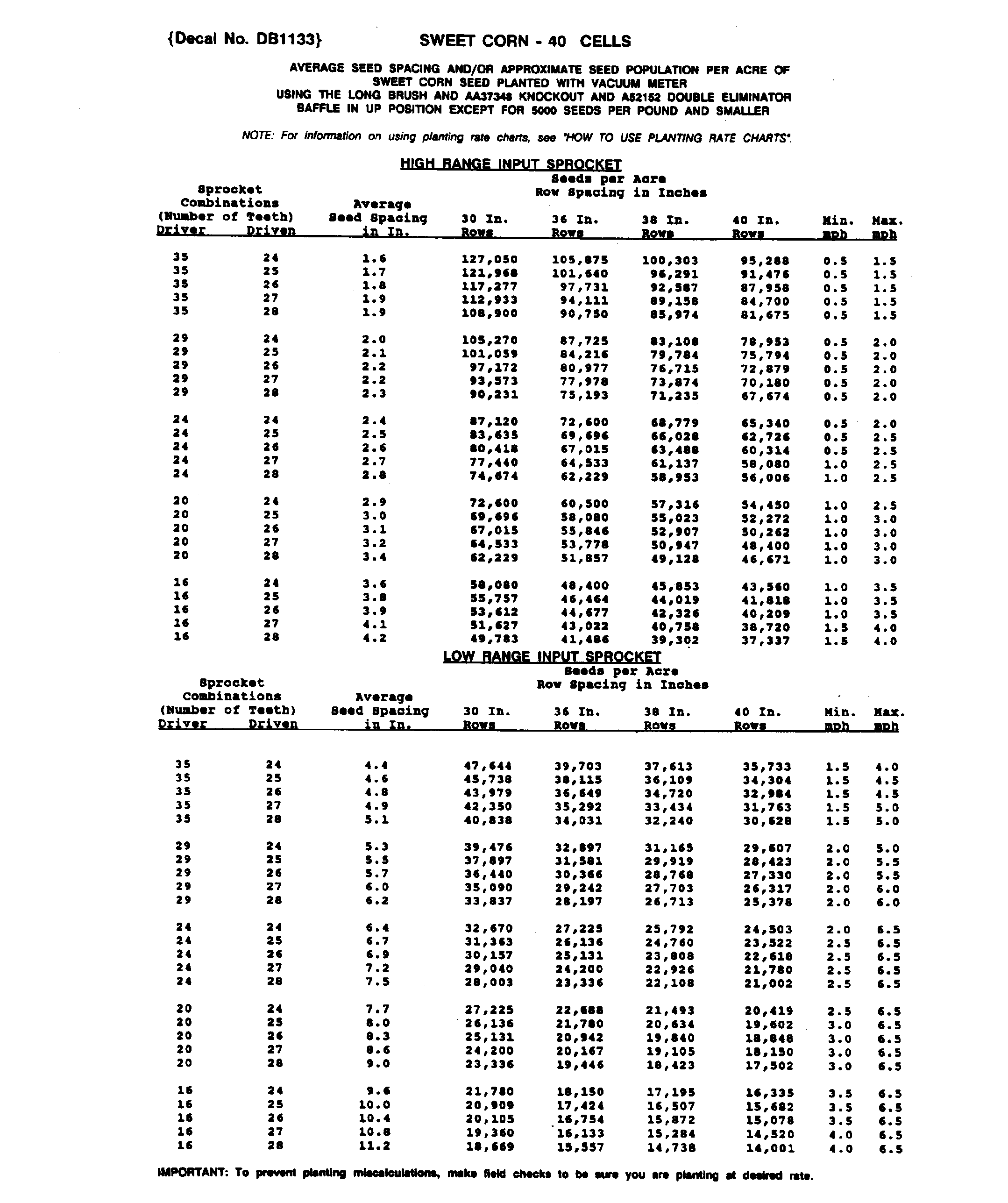

A50418

OUO6074,00008EE -19-04DEC03-2/2
