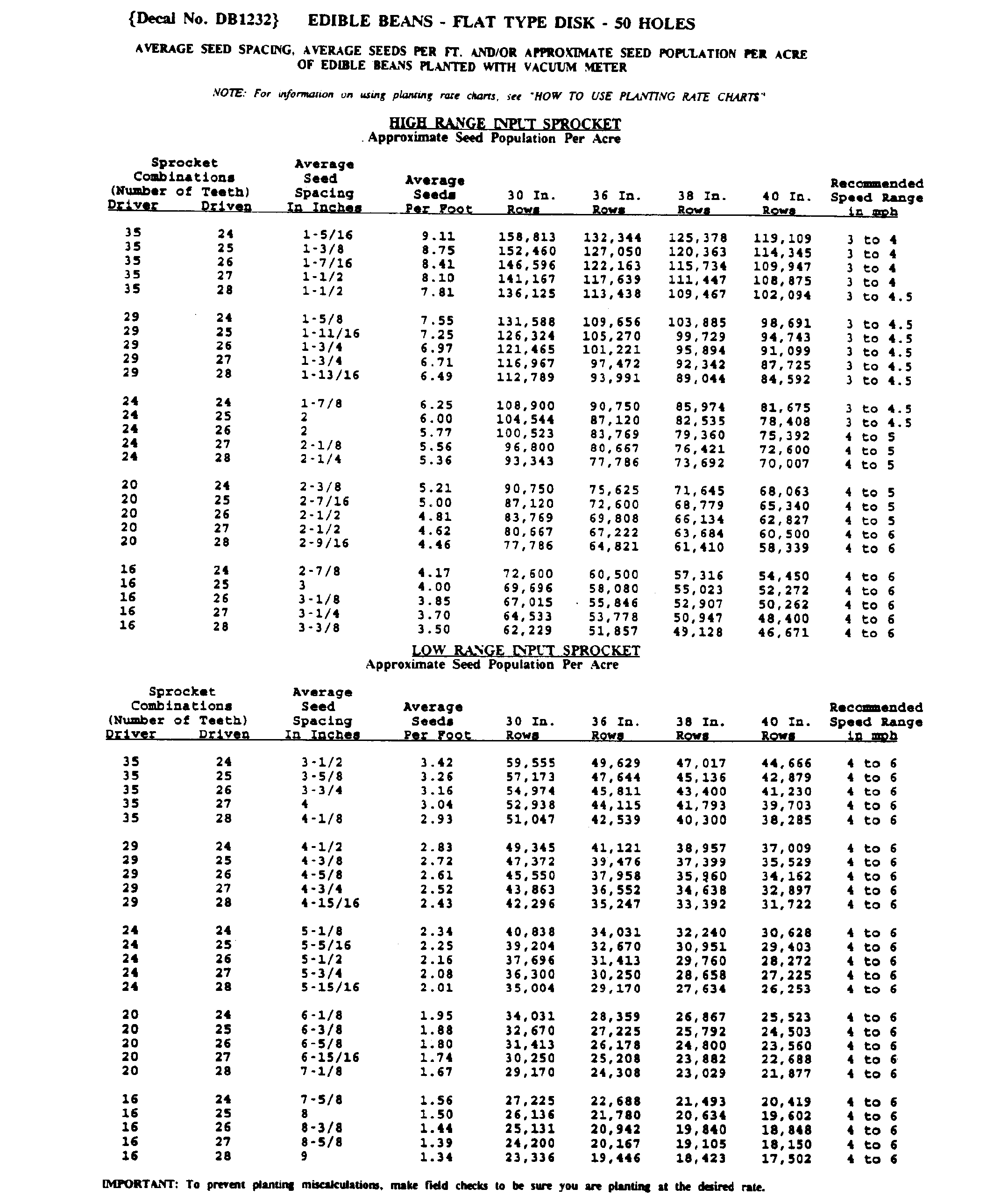

Cotton Using Edible Bean Flat-Type Seed Disk and Double Eliminator-30 in. to 40 in. Rows-Meter Setup and Rate Chart

Move vacuum meter baffle tab (A) to upper position (B).

Adjust double eliminator as follows:

Turn cam nut (C) to move top of double eliminator (D) toward center of housing as far as possible. Tighten screw (E).

Use regular (long) vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see VACUUM LEVEL SEED CHART-FLAT EDIBLE BEAN DISK in Operating Vacuum Meter section.


A-Tab
B-Upper Position
C-Cam Nut
D-Double Eliminator
E-Screw

A35259

Upper Baffle Position

A47009

Regular (Long) Brush
